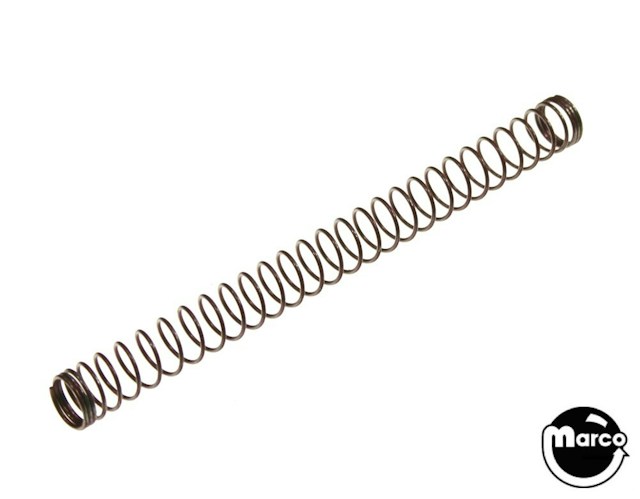

Spring - shooter rod .042 inch red
#266-5001-02
Inner ball shooter assembly high tension .042 inch diameter wire compression spring with red coating.
Inner spring coil diameter is .406 inches and overall length is 5.62 inches.
Reference:
Data East / Sega / Stern spring tensions & color code:
- 266-5001-02 red .042 inch wire
- 266-5001-03 black .037 inch wire
- 266-5001-04 green .035 inch wire
- 266-5001-05 blue .031 inch wire
- 266-5001-06 yellow .047 inch wire
- 266-5001-07 orange .038 inch wire
- 266-5001-10 purple .040 inch wire
- 10-148-2
0.018 lb
