Miniature snap action switch - 125VAC - 10A - 50gf with 3 .187 terminals and no actuator...
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

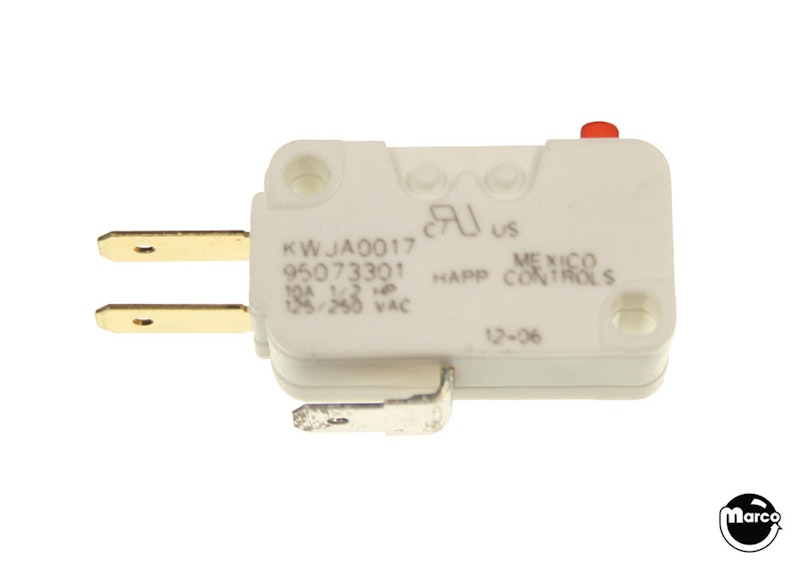

Miniature snap action switch with 3 terminals and no lever used on many pinball machine.
Specifications:
Max Voltage: 125VAC / 30 VDC
Max Current: 10A
Operating Force: 50gf
Contact Configuration: Single Pole, double throw (SPDT)
Terminal Type - Common: Straight - Common .187" (4.7mm) quick connect
Terminal Type - Normally Open: Straight - .187" (4.7mm) quick connect
Terminal Type - Normally Closed: Straight - .187" (4.7mm) quick connect
Reference:
KWJA0017
Select manufacturer to view game compatibility

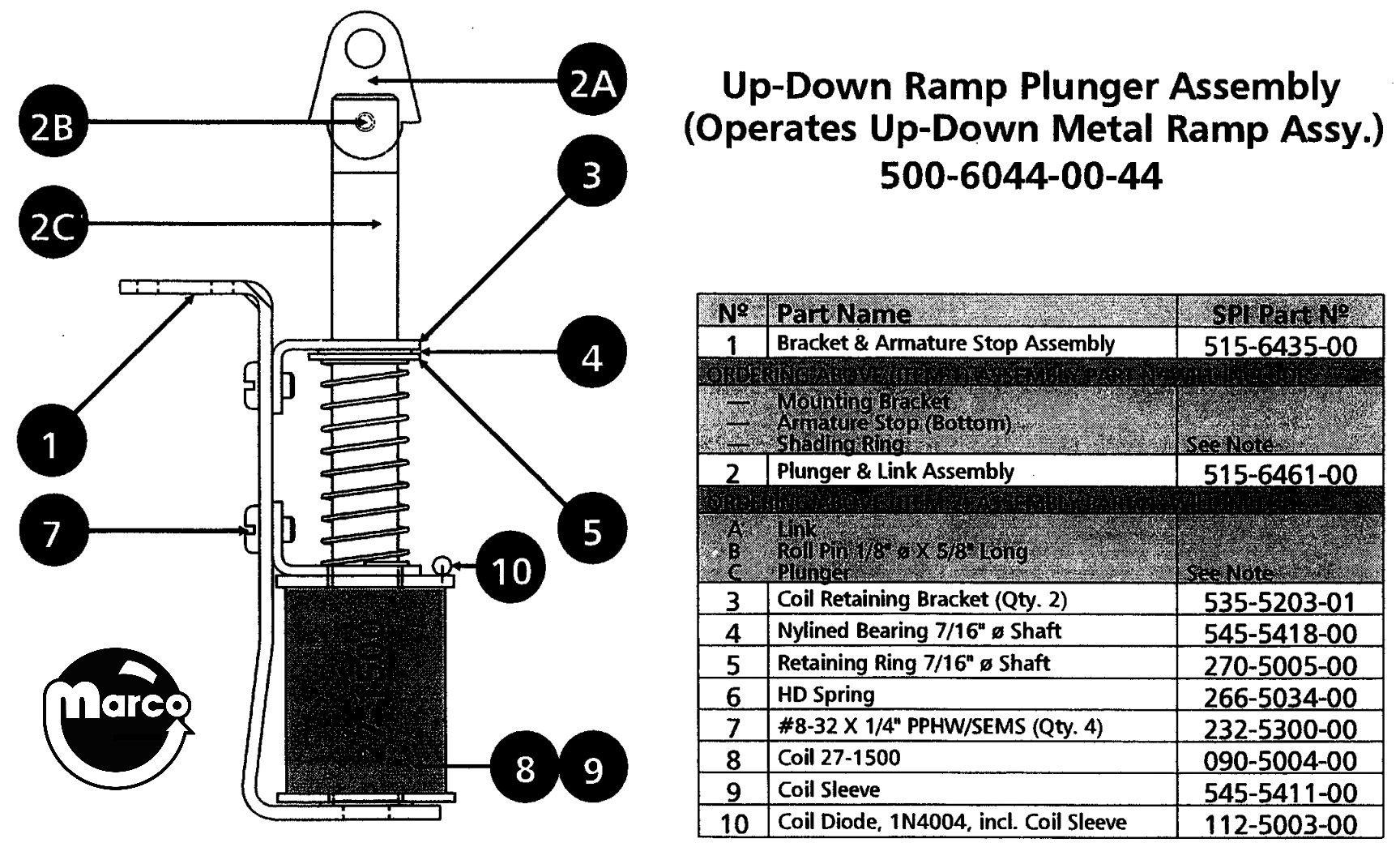

APOLLO 13 (Sega) Up-Down ramp plunger assembly

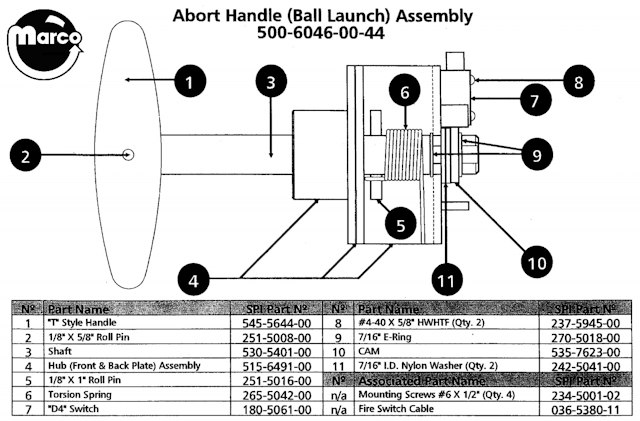

APOLLO 13 (Sega) Abort handle ball launch assembly

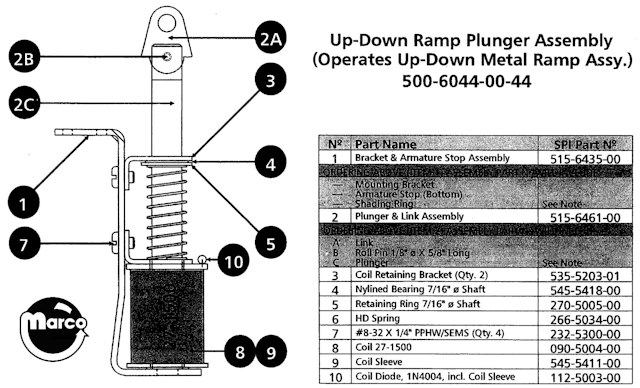

APOLLO 13 (Sega) Up-Down plunger and link
