Williams Component Level Troubleshooting Manual
This product is currently discontinued.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

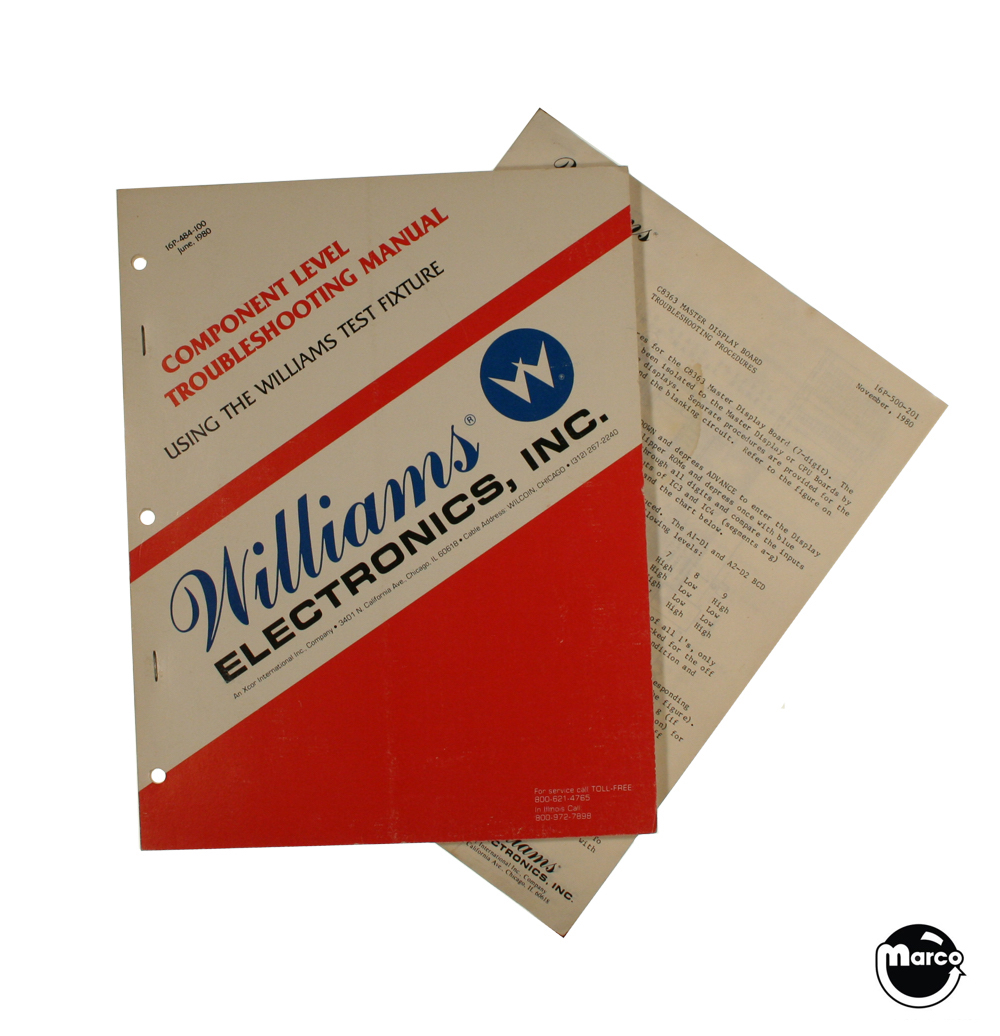

Component Level Troubleshooting Manual using the Williams Test Fixture. 55 pages plus flow charts and wiring diagrams. Fair condition.
Sections Include:
General description for basic test routine and maintenance Troubleshooting for Driver Board, Solenoid Driver, Lamp Row Drivers, Switch Matrix Inputs and Drivers, Driver Board, Blanking Power Supply, Master Display Board, CPU Board, Sound board, Diagnostic Program, Flow Charts, Test Fixture Connections, Test Fixture Wiring Diagrams
Reference:
16P-484-100
