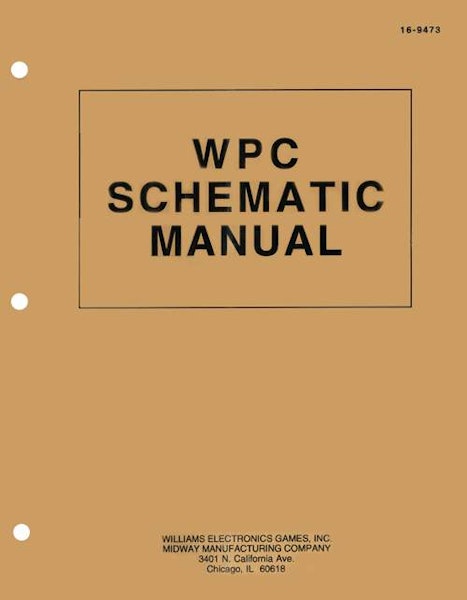

WPC Schematic Manual. 16-9473 Large fold out wiring diagrams and schematics. ORIGINAL
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
WPC Schematic Manual. Large fold out wiring diagrams and schematics. Original.
Includes:
Power Wiring DiagramCPU Board SchematicPower Drive Board SchematicDot Matrix Controller Board SchematicFliptronic II Board SchematicSound Board SchematicWPC Sound Board Schematic
Reference:
16-9473
Select manufacturer to view game compatibility
