WHIRLWIND (Williams) Backbox tech chart

#16-574

Bally ATTACK FROM MARS pinball mchine backbox technical info matrix chart.

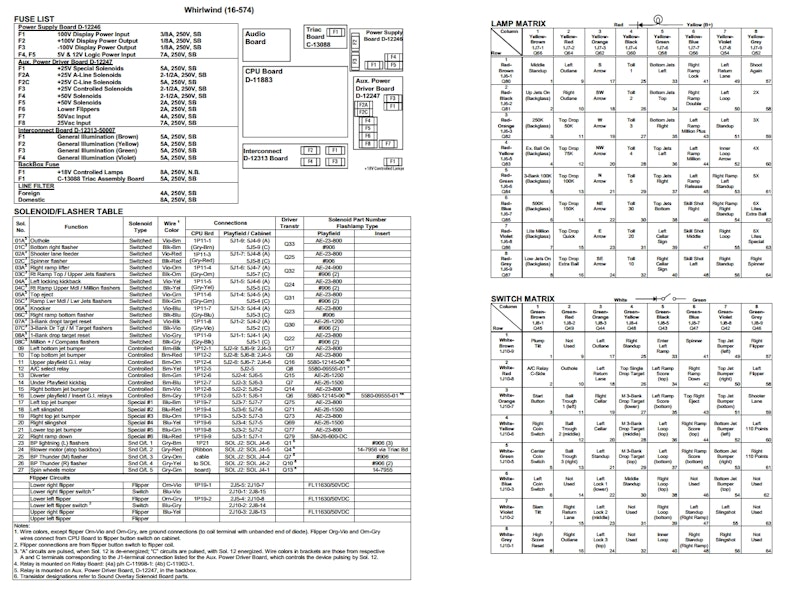

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl

Reference:

  • 16-574

0.5 lb

$9.99

In Stock
