HURRICANE (Williams) pinball machine schematic manual. 22 X 16 fold-out schmatics. June 1991. Original. ORIGINAL.
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

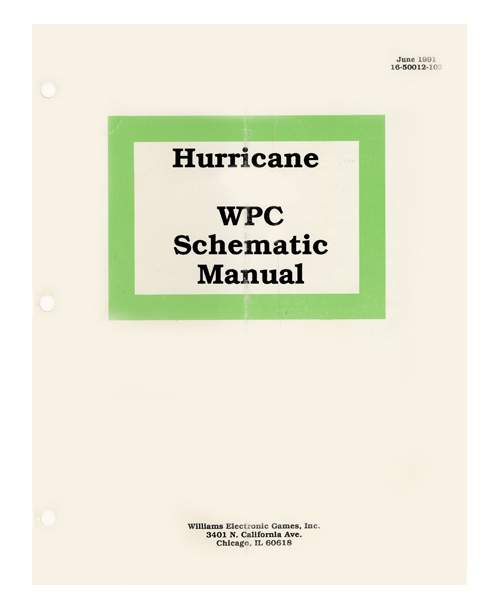

Original HURRICANE (Williams) pinball machine schematic manual. June 1991. Large 22 inch X 16 inch fold-out schematics.
Includes:
CPU Board schematics
Power Driver Board schematics
Dot Matrix Controller Board schematics
Sound Board schematics
Power Wiring diagram
Reference:
16-50012-102
