MONSTER BASH (Williams) Backbox tables

#16-10656

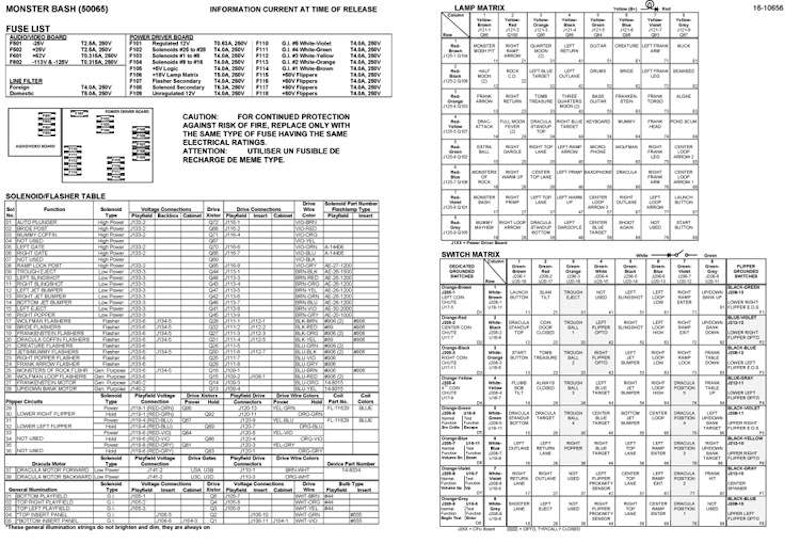

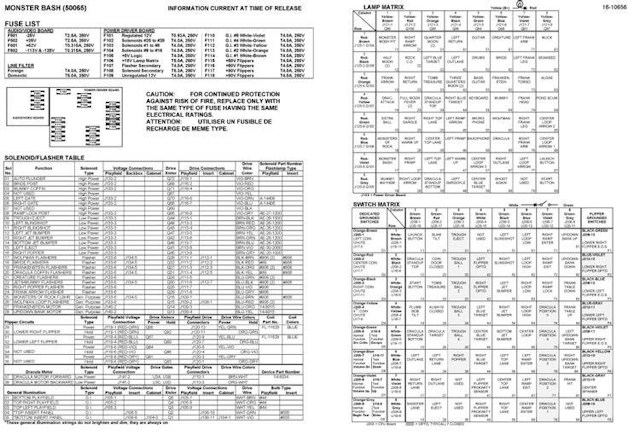

11 x 17 inch vinyl peel & stick inside backbox chart for Williams MONSTER BASH

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

Reference:

  • 16-10656
  • 50065

  • 8 oz

    $9.95

    In Stock
