CONGO (Williams) Backbox tech chart

#16-10209

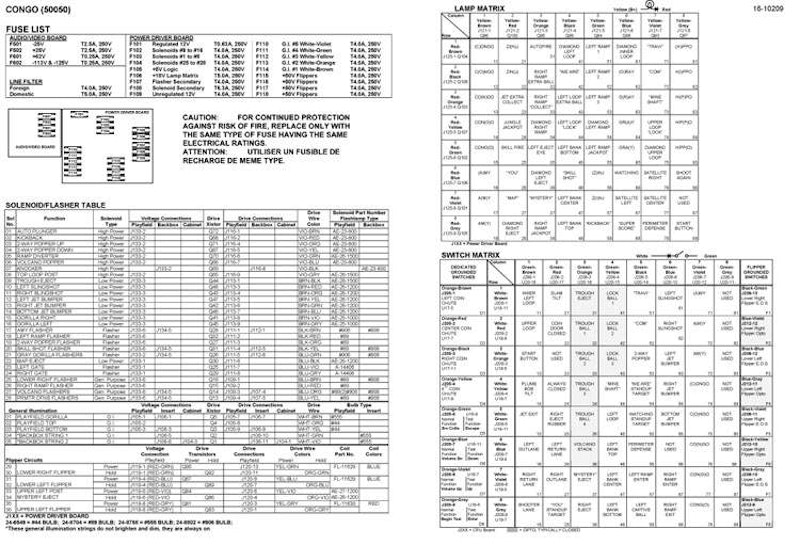

11 x 17 inch vinyl peel & stick inside backbox technical matrix chart for Williams CONGO pinball machine.

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

Reference:

  • 16-10209

  • 8 oz

    $10.00

    In Stock
