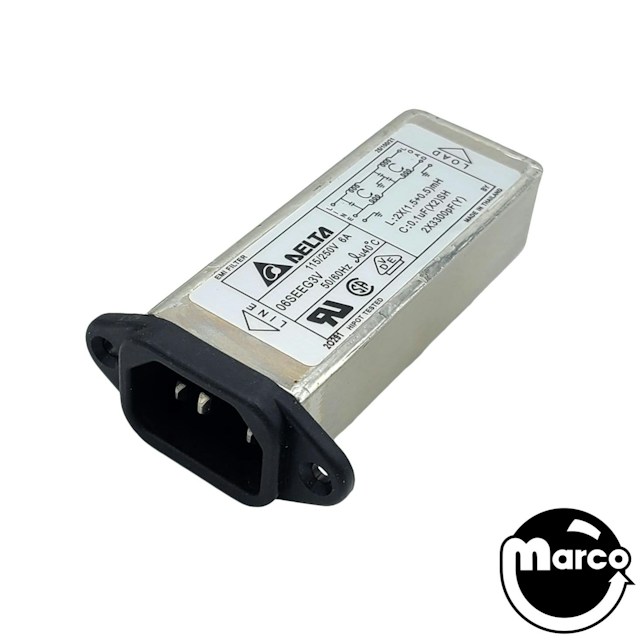

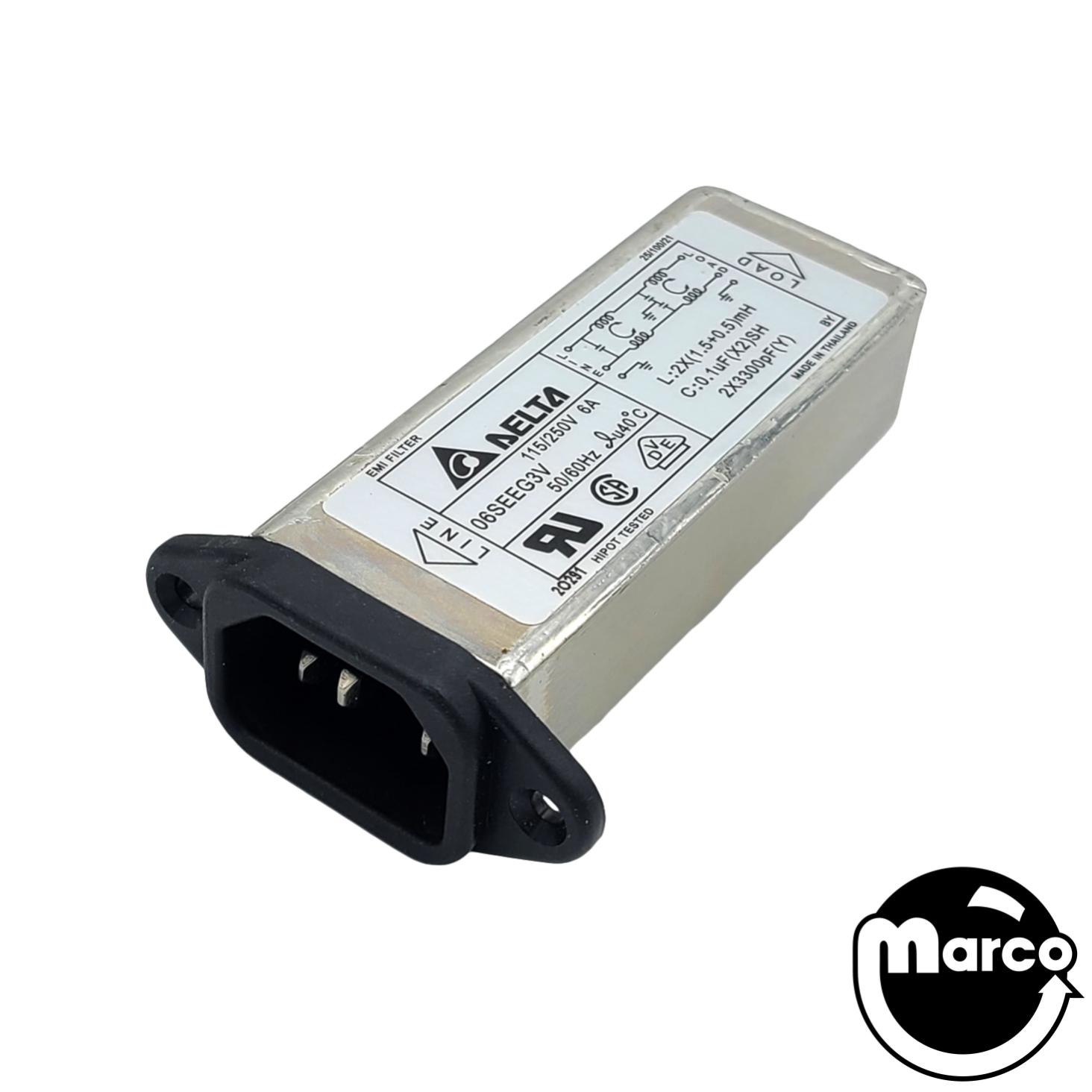

Line Filter IEC with Vertical Output (STERN)

Name: Line Filter IEC with Vertical Output (STERN)
SKU: 150-5019-00
Price: 34.99 USD
Availability: InStock

#150-5019-00In Stock

Two stage high performance IEC connector EMI line filter with vertical output 115/250V - 6 Amp - 50/60 Hz...

$29.99

Quantity:

CALIFORNIA WARNING

This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product Details

Two stage high performance IEC connector EMI line filter 115/250V - 6 Amp - 50/60 Hz.

Electrical specification

L1=1.5mH L2=0.5mh, Cx=0.1uF (x2), Cy=3300pF (x2)
UL CSA certified and VDE approved

Dimensions:

Main body length 44.8 x width 22.5 x height 18.0mm
Mounting holes / pitch: 4.7mm, diameter / 54.0mm
Net weight approx: 32 grams

Reference:

Stern Pinball, Inc. (SPI): 150-5019-00
Delta: 06SEEG3V
