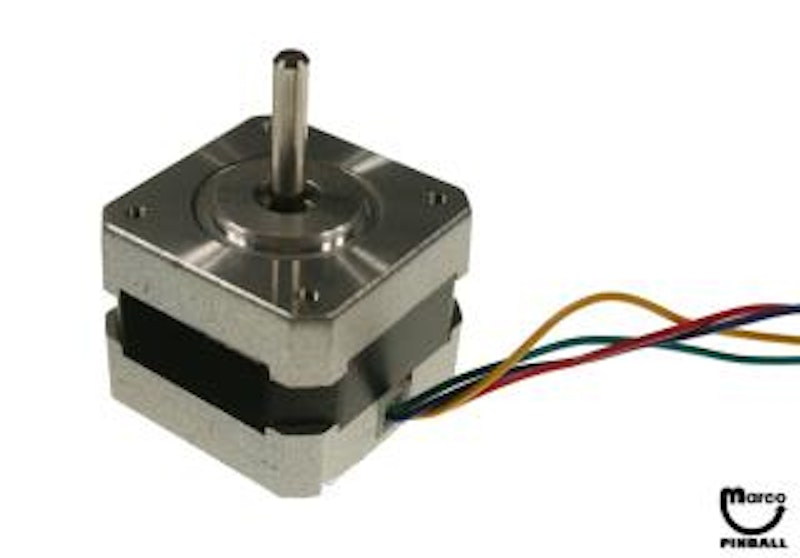

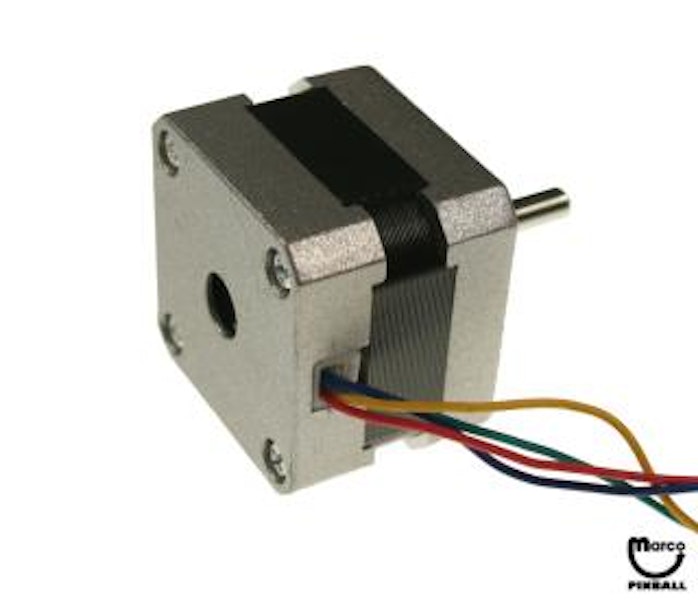

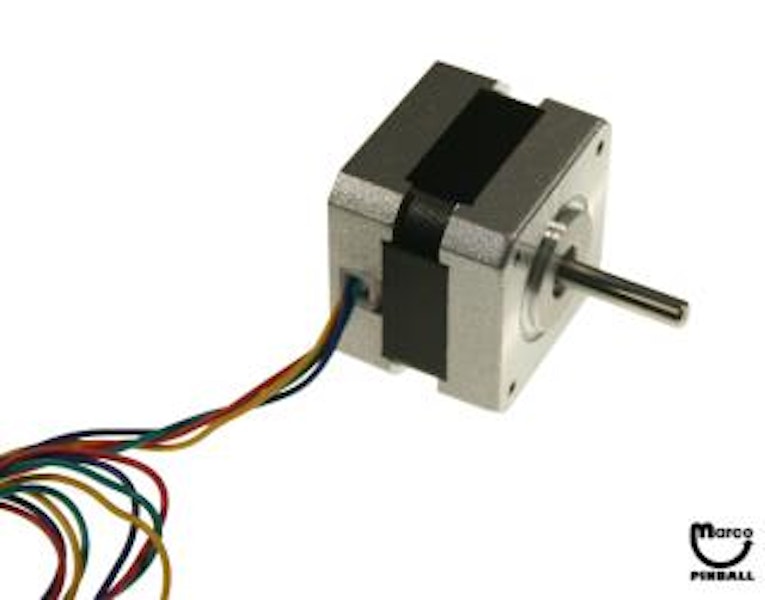

Stepper motor and connector assembly for Bally SCARED STIFF and WHO DUNNIT.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

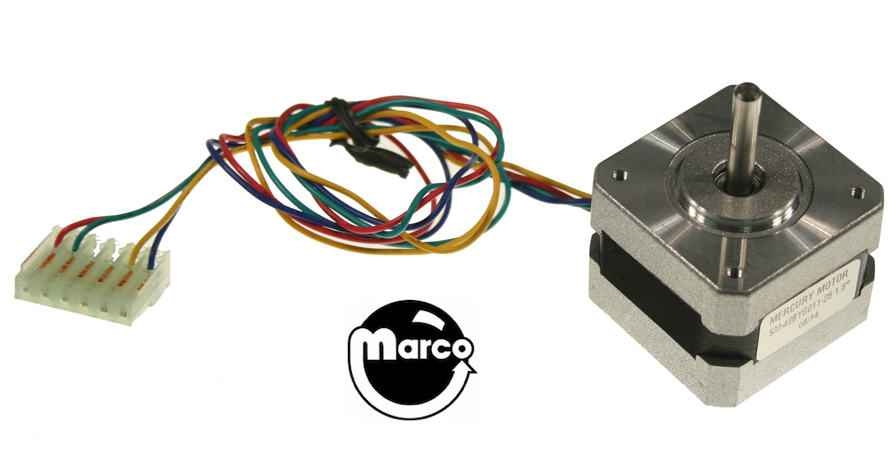

Stepper motor and connector assembly for use on Bally SCARED STIFF spider and Bally WHO DUNNIT slot machine features. Comes with connector installed and keyed with no assembly required. Plug and play.
Motor specifications:
Step Angle (degrees) :1.8
2 Phase
Rated Voltage : 12V
Rated Current : 0.33A
Holding Torque : 2.3kg*cm
5mm Diameter Drive Shaft
Winding resistance: 32.6 Ω
Winding inductance: 48 mH
Max flux linkage: 1.8 Vs
Maximum Detent Torque: 0.016 N.M
Total inertia (kg.m.m): 3.5 Kg.m.m
Total friction (kg.m/s): 4 Kg.m/s
INSTALLATION NOTES:
Be sure the Molex® connector is properly aligned when connected.
Motor connector pinout:
pin 1 - blue
pin 2 - yellow
pin 3 - n/c
pin 4 - n/c
pin 5 - green
pin 6 - red
Cable length: 12 inches
For Bally SCARED STIFF, if Spider rotates counterclockwise, reverse the Molex® connector. Spider should spin clockwise.
