Transistor N-CH MOSFET 100V 46A TO-220AB BUK9529-100B
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
MOSFET transistor N channel 100V 46A 3-Pin (3+Tab) in a TO-220AB package.
Stern SAM board location Q15 & Q16. Controls flipper coils.
Reference:
9529-100B
110-0168-00
BUK9529-100B,127
BUK9529-100B
BUK9529-100B127
Select manufacturer to view game compatibility

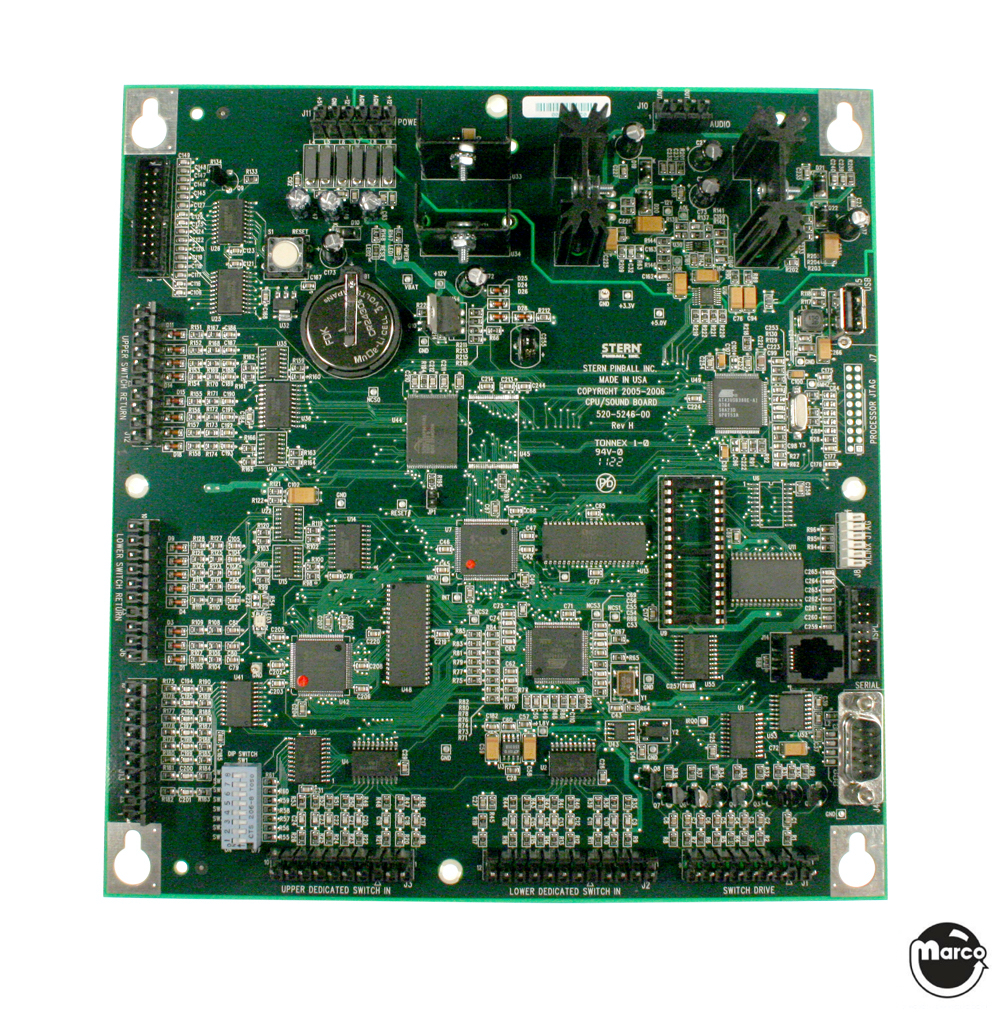

New Stern S.A.M. system CPU / Sound board for select games built from 2006-2011

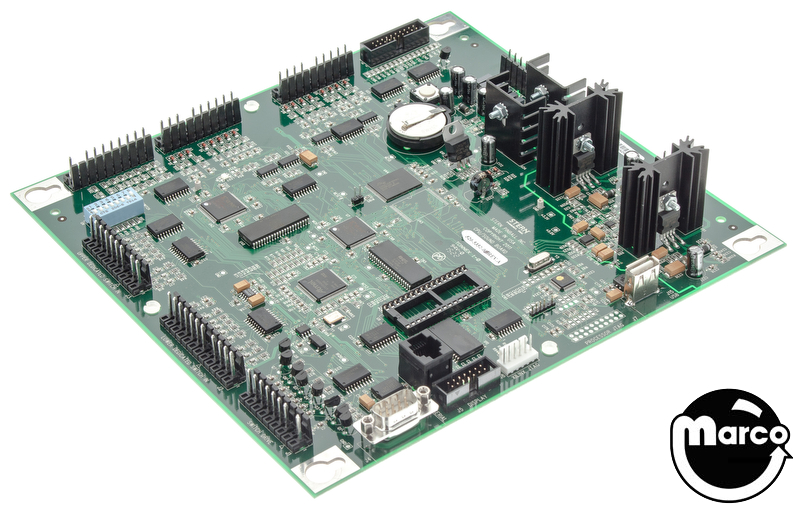

Stern S.A.M. system CPU / Sound board
TRON / AVATAR LE (Stern) CPU board
New Stern S.A.M. system CPU / Sound board for select games built from 2006-2011
IC - SMD 44 pin IDT71V016SA15Y SRAM 1mbit

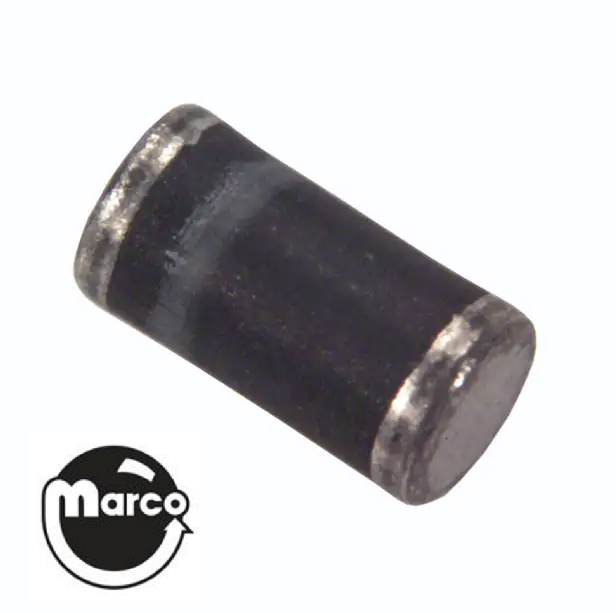

Diode - SMD DL4004 400V 1.0A MELF case
XC95144XL programmed for U42 on S.A.M system CPU/sound board.
IC - SMD 44 pin IDT71V416S15Y RAM S.A.M. CPU board

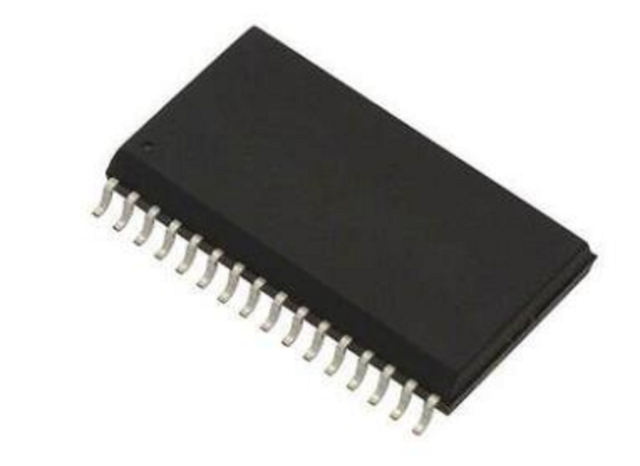

IC - SMD 32 pin CY62128 SRAM
