Coil - solenoid 23-800 DE / Sega / Stern USE AE-23-800-01

#090-5001-00
Coil - solenoid 23-800 DE / Sega / Stern USE AE-23-800-01
Coil - solenoid 23-800 DE / Sega / Stern USE AE-23-800-01
Coil - solenoid 23-800 DE / Sega / Stern USE AE-23-800-01
Coil - solenoid 23-800 DE / Sega / Stern USE AE-23-800-01
Availability
For Reference
Order
This product is currently discontinued. Email me if it becomes available
Product details

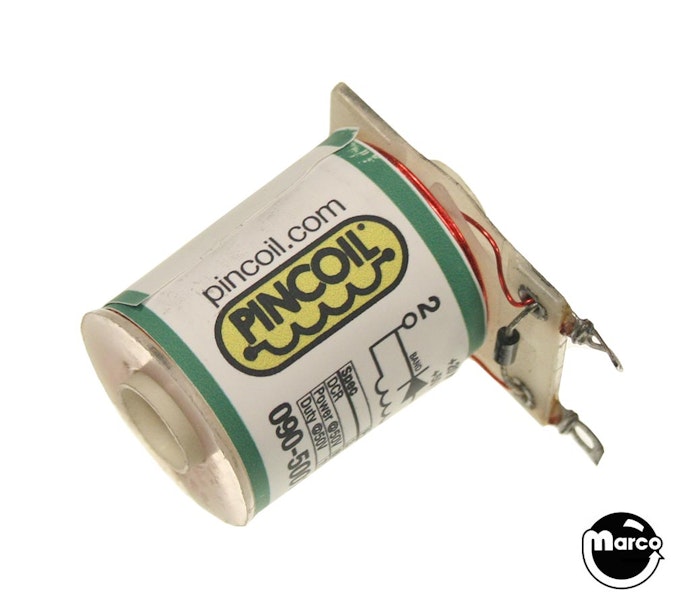

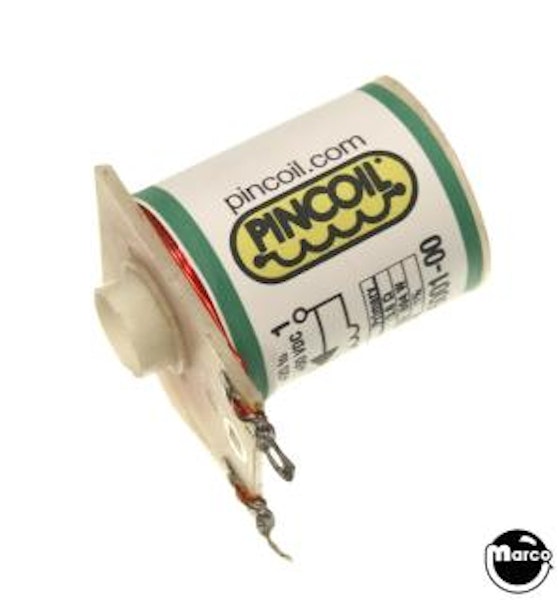

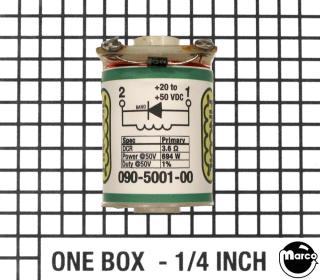

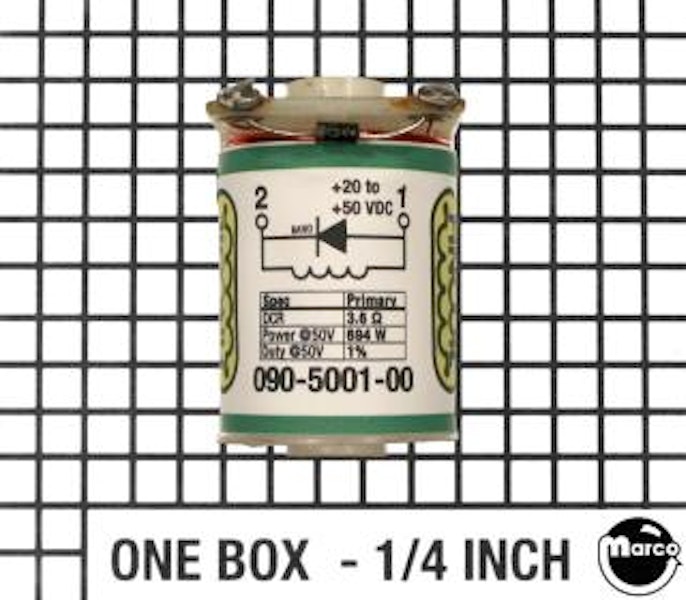

Data East / Sega / Stern solenoid coil. Includes diode and sleeve.

Specifications:

  • Wire Gauge: 23

  • Number of turns: 800

  • Resistance in ohms: 3.6

Reference:

  • 090-5001-00

  • Replaced by AE-23-800-01 as an equivalent substitute

  • Wico 04-132400

  • Replaces 090-5001-0T/OT

  • Replaces 090-5001-0B/OB

  • Replaces 090-5001-01

  • Replaces 090-5001-02

  • 090-5001-ND (no diode) remove diode when substituting

4.7 oz
Product compatibility
Related Items
-23-800 Coil - solenoid - 12 inch wire leads
23-800 Coil - solenoid - 12 inch wire leads
#090-5001-ND-FC
23-800 Coil - solenoid for DE/Sega/Stern with 12" wire leads
In Stock
$24.99
-Coil - Coil - solenoid Data East/ Sega / Stern wire leads
Coil - Coil - solenoid Data East/ Sega / Stern wire leads
#090-5001-NL
Solenoid coil with no terminals version of AE-23-800 rev C.
In Stock
$25.99
-Coil - Data East / Sega / Stern

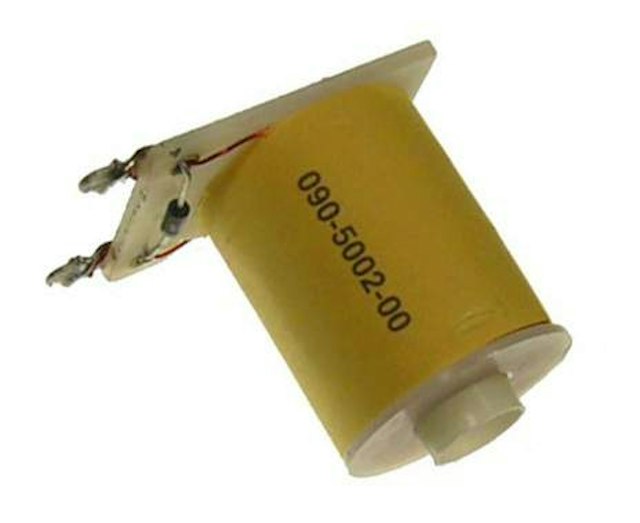

Coil - Data East / Sega / Stern
