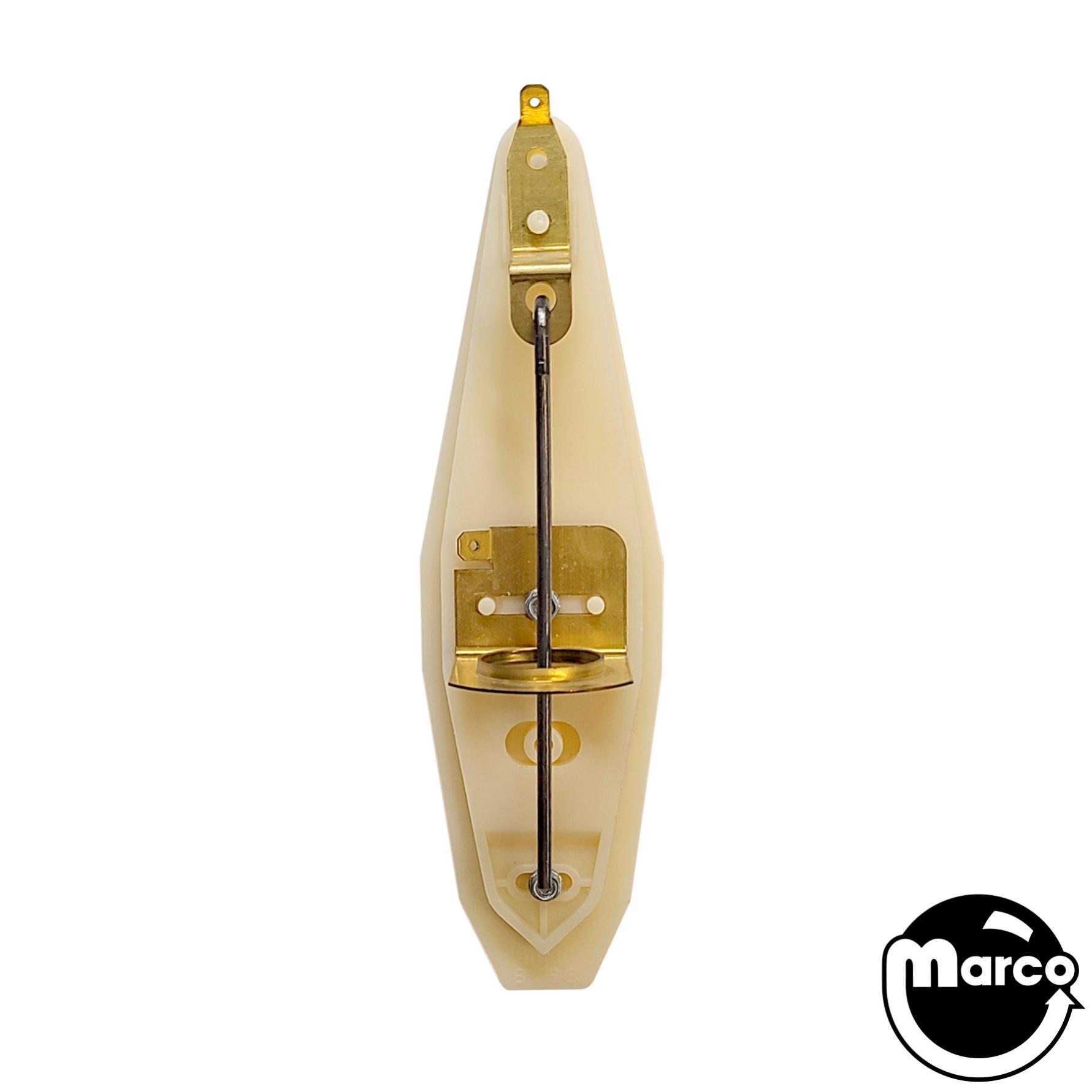

Tilt mechanism assembly
#04-10346
Tilt mechanism assembly includes the tilt mech mounting plate, upper and lower tilt brackets, tilt mech pendulum and plumb bob wire.
Plumb bob NOT included.
Reference:
- 04-10346
- 920-6502-A PLUMB BOB
- A-15360 Tilt Mech Mount Plate Assembly
- 01-3444 Upper Tilt Bracket
- 01-3445 Lower Tilt Bracket
- 03-8668 Tilt Mech Pendulum
- 535-5319-02 Plumb Bob Wire
- 4006-01113-06 #6-32 x 3/8" screws
- 4106-01115-16 #6 x 1" screws
1.87 oz
