WPC High Voltage satellite board A-14039
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

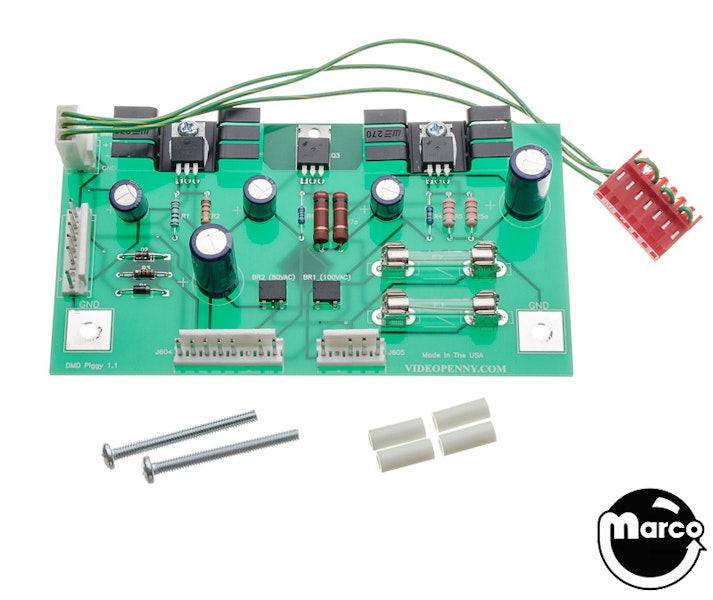

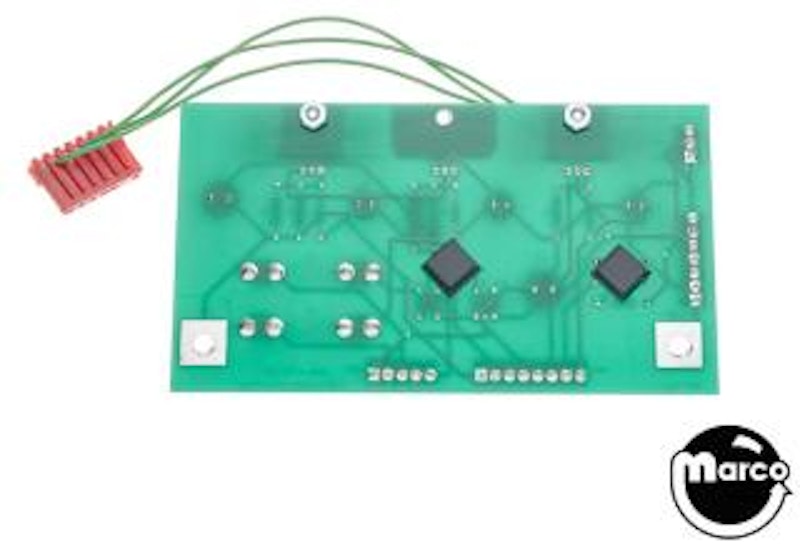

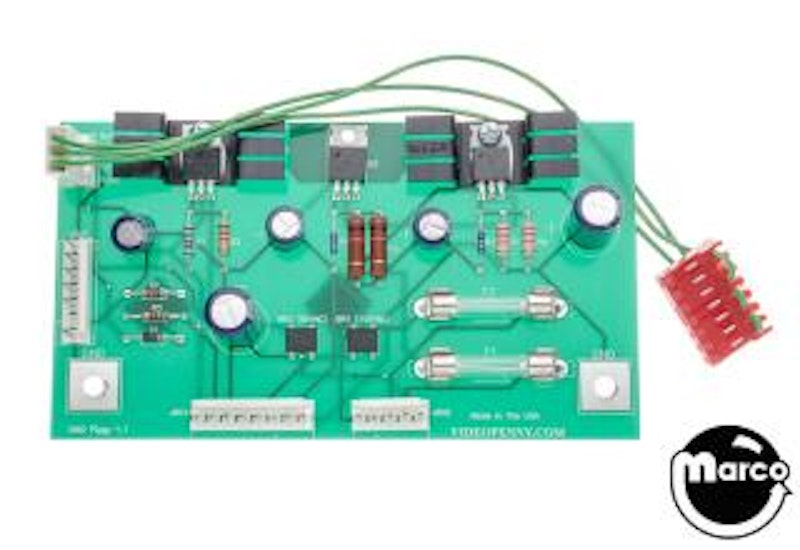

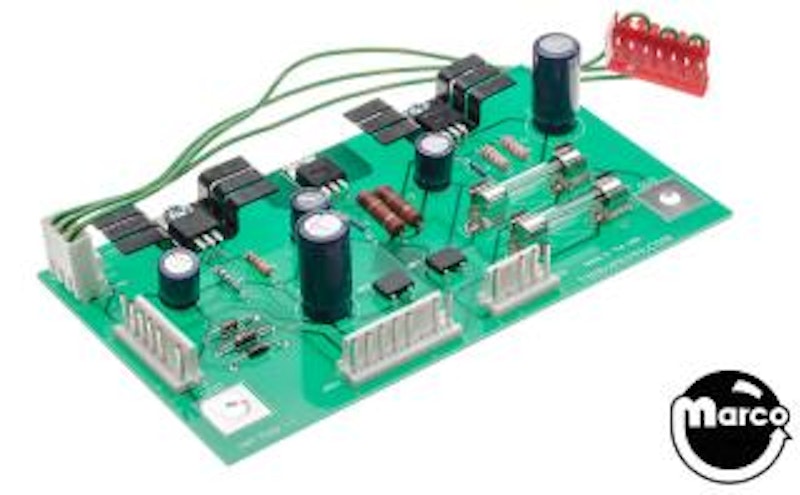

New High Voltage circuit replacement satellite module for the Williams part A-14039 Dot Matrix controller board
This piggyback power supply board replaces the commonly burnt high voltage power supply section of any WPC A-14039 dot matrix controller board by mounting on top of the existing board. There is no soldering required and no need to remove the old board.
Includes instructions. Installation requires a Phillips screwdriver and takes about 5 minutes.
Reference:
A-14039 Dot Matrix controller board
5075-12826-00 zener diode 62v 1 watt
5070-09054-00 diode 1N4004
5075-12824-00 zener diode 12v 1 watt
5075-12823-00 zener diode 56v 1 watt
5164-12154-00 transistor MJE15030
5164-12155-00 transistor MJE15031
5194-09055-00 transistor MPSD52
5164-09056-00 transistor MSPD02
5043-09845-00 capacitor .001mfd 50v
5010-10171-00 resistor 56 ohm 1/4 watt
