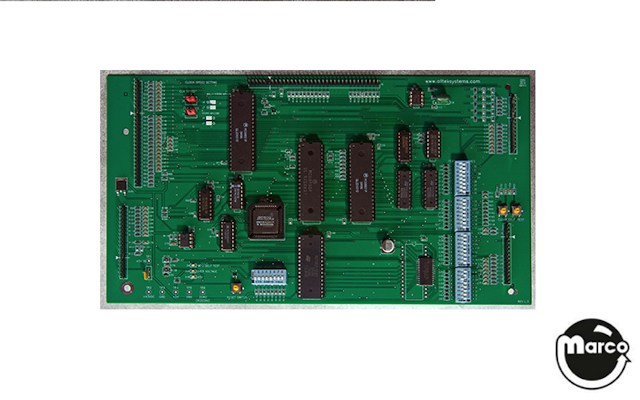

Replacement MPU board for Bally or Stern coin op pinball machine by Alltek
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.
The last MPU board you'll ever need! If you own a Bally or Stern coin op pinball machine with an AS-2518-35 or AS-2518-17, AS-2518-133, AS-2962-7, A084-91603-AA44, C-433-110, MPU100 or MPU200 MPU board, this Alltek board is for you!
It's a plug and play replacement that has every classic Bally and Stern pinball game program ROM on board. The Alltek Ultimate MPU board is a NEW and ENHANCED COMPUTER for your pinball machine. Some of the many features are:
All 93 games are dip-switch selectable.
New FREEPLAY setting for most games!
No batteries required. Simtek® chip with 100 year memory retention warranty
New advanced diagnostics.
Over-voltage protection circuit.
Auto-resetable fuse protection.
On-board Self-Test button.
Full static protection of on-board IC's.
Test points for all DIP switches for easy testing.
One chip reset replaces the original 16-component reset from old board.
On-board reset switch for easy reset without game cycling.
On-board memory clear switch.
On-board power monitoring LED indicator.
Automatic zero-crossing detector circuit - No jumper required
Easy read instructions for fast installation game repair.
Half size board fits existing mounting rails.
New, improved built in diagnostic program provides a Burn In feature and enhanced troubleshooting when used with optional ULTIMATE TEST CARD.
All board components labeled for easy identification.
Test points that allow easy troubleshooting.
Schematic and manual included and available online. Email and phone support.
Lifetime warranty for home or commercial use.
Made and assembled in the USA.
Lifetime warranty - best in the industry.
For more information or questions email: ALLTEKSYSTEMS.COM
Please note: NOT compatible with the home versions of FIREBALL, CAPTAIN FANTASTIC, or EVEL KNIEVEL.
OTHER GAMES supported:
BIG BALL BOWLING
BLACK SHEEP SQUAD
RONGENESIS PUCK BOWLER
BLACK BEAUTY SHUFFLE
BIG BAT BASEBALL
New FATHOM
New VECTOR
SEXY GIRL

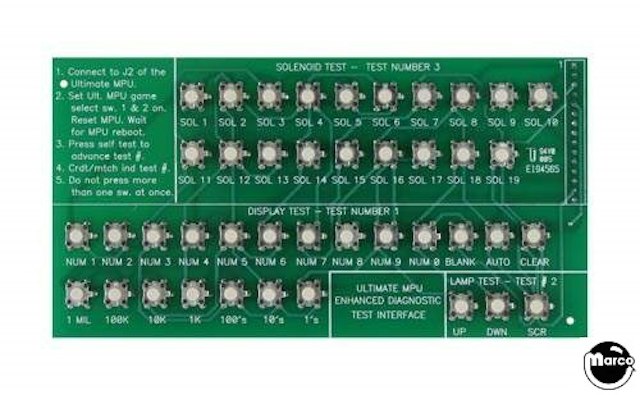

Also check out the companion ULTIMATE TEST CARD Test Fixture (Item #ULTEST) to help diagnose other problems with your 1977-1984 Bally or Stern pinball machine. Order both the ULTIMATE MPU & TEST CARD (Item #ULTCOMBO) and SAVE $10.00.
Select manufacturer to view game compatibility
NEW! From the makers of the world famous AlltekULTIMATE MPU Board for pre 1984...
Alltek ULTIMATE Lamp Driver board

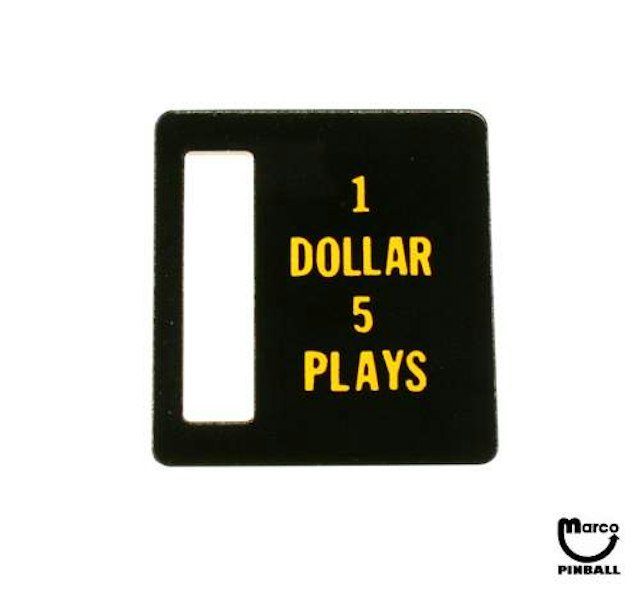

Screened plastic Price Plate with coin chute opening for early Bally pinba...
Screened plastic Price Plate with coin chute opening for early Bally pinba...
Rectifier board Bally AS-2518-18,49 / Stern TA-100
PinScore Premium Pinball LED Displays
Premium six-digit PinScore LED display for Bally/Stern pinball machines.
The Alltek Ultimate MPU TEST CARD is designed to work only with the ULTIMATE MPU
Connector rebuild kit for wiring harness and board headers on all Bally and SEI Stern boards
LED flicker eliminator kit Bally aux lamp board AS-2518-43

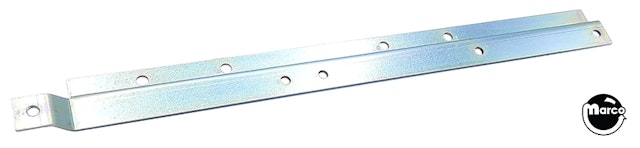

Backbox circuit board bracket - Bally

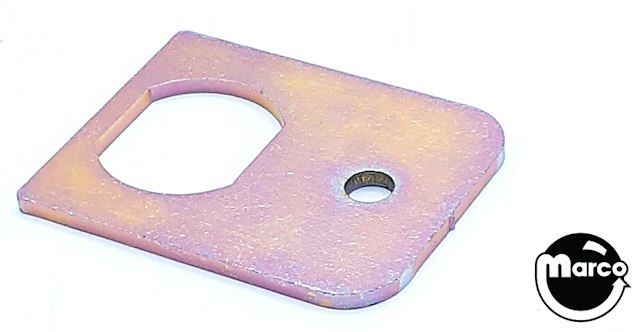

Backbox lock plate Bally
SOLDERLESS Rectifier board for Bally & Stern
New stainless steel front coin door front panel for most 1972-1983 Bally games

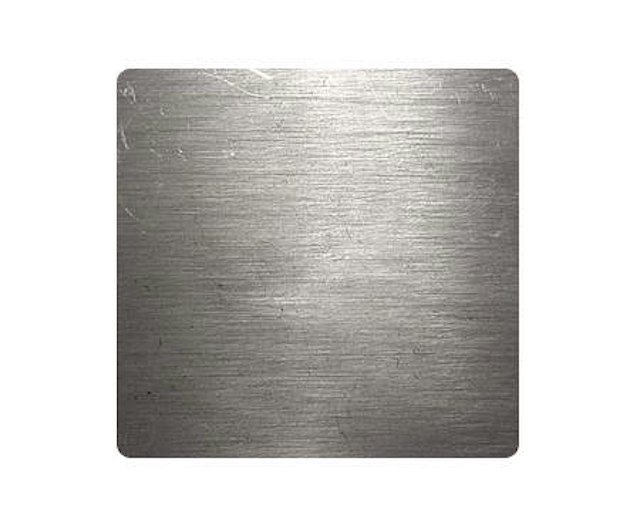

Stainless steel blocking plate used on early Bally coin entry casting asse...

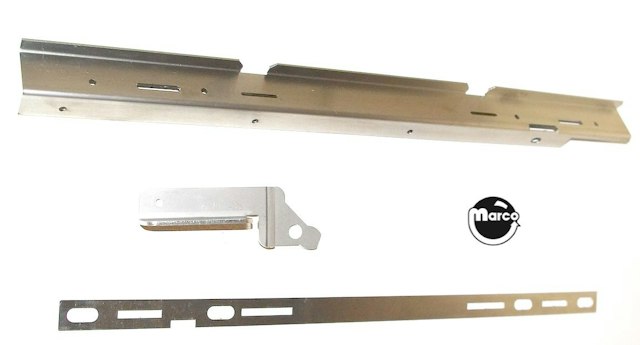

Lockbar receiver Bally assembly 1973-1988

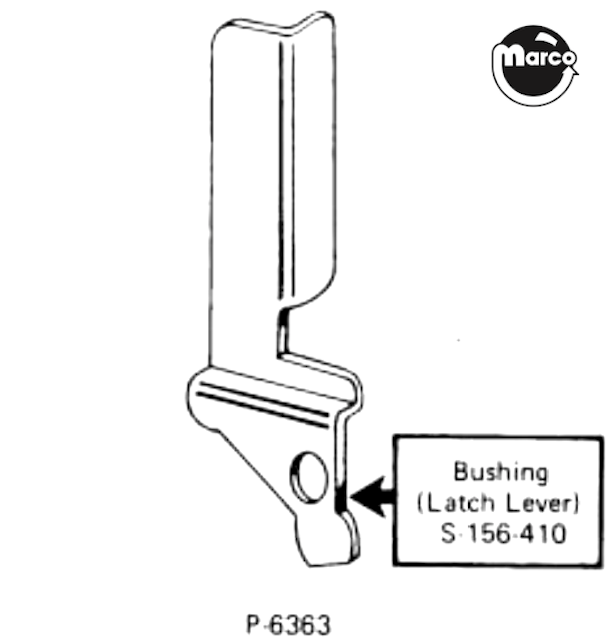

Lockbar receiver Bally lever

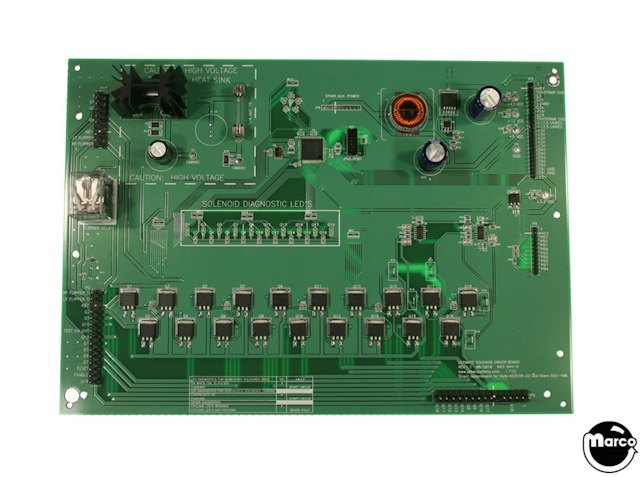

ULTIMATE Bally & Stern Solenoid Driver - Refurbished
