8 power resistors that replace the original 2 Watt 27 ohm parts
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

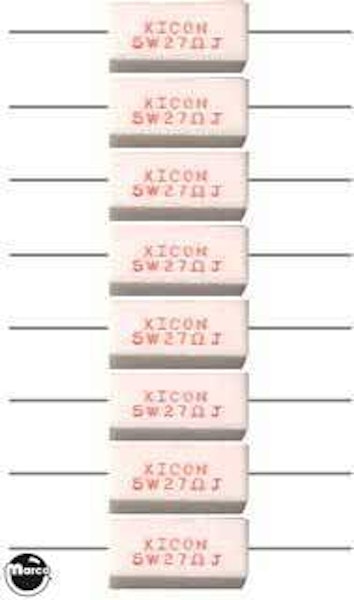

8 piece, 5 watt 27 ohm power resistor set.
Kit contains 8 power resistors that replace the original 2 Watt 27 ohm resistors on early solid state Williams driver boards. This is referred to in the 1979 Williams Service Bulletin SS-13 shown below.
Solder all 8 of these 5 watt 27 ohm resistors onto your Williams System 3,4,6,7 driver board to prevent future board overheating.
Mount the resistors about 1/4 inch above the board surface to allow for better air circulation.
Also, change all lamps in these machines from No.44 to No.47 or LED's. They draw about 40% less current and will minimize overheating the driver board in the event of a CPU ‘lock-up’.
Click here for Williams service bulletin SS-13 Reference:
5012-10860-00
SS-13
