Williams/ Bally WPC Spare Semiconductors Kit
This product is not currently available.
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

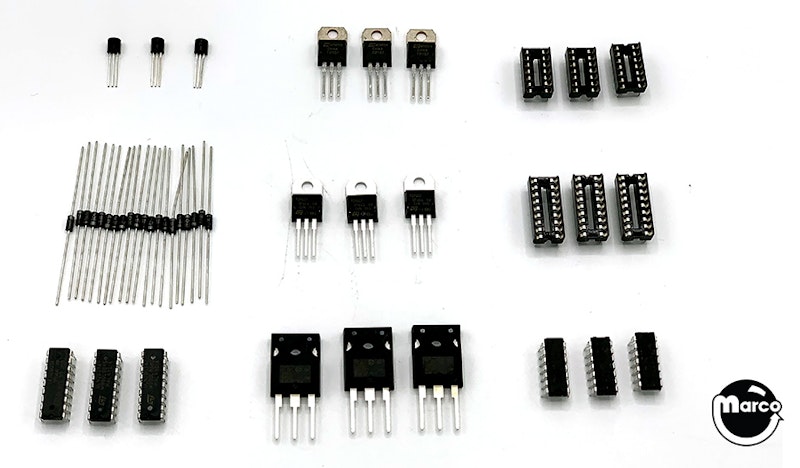

A kit consisting of commonly failed electronic components for Williams and Bally games using the WPC system.
Kit includes:
TIP102 transistor (3 pieces)
TIP107 transistor (3 pieces)
TIP36C transistor (3 pieces)
2N5401 tranisistor (3 pieces)
1N4007 diode (20 pieces)
ULN2803 integrated circuit (3 pieces)
LM339N integrated circuit (3 pieces)
DIP14 integrated circuit 14 pin socket (3 pieces)
DIP18 integrated circuit 18 pin socket (3 pieces)
Reference:
5162-09410-00 TIP102
5162-12428-00 TIP107
5162-12422-00 ULN2803A
5370-12272-00 LM339N
5700-10389-00 DIP 18 socket
Select manufacturer to view game compatibility
Preferred replacement for TIP120, TIP122, 2N6045 and SE9302
Transistor PNP 100 v 8a TO-220 5192-12428-00
Common 100v, 25a, PNP general purpose power transistor for most machines
Transistor - PNP pre driver used on many pinball machine circuit boards.
Diode - 1000V 1A DO-41
Integrated circuit 18 pin DIP Switch Matrix Driver chip 5162-12422-00
Integrated Circuit 14 pin DIP V comparator XO-583
IC Socket - 18 pins
14 pin double wipe integrated circuit pcb socket.
Solder - Pocket Dispenser 14 gram tube 60/40 tin/lead
