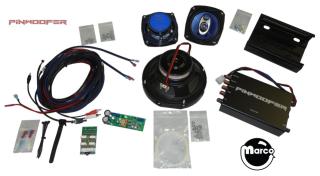

PinWoofer Spike 2 Advanced Sound System
#PSS-PW-SPIKE2
Our system delivers exceptional tonal quality and unprecedented clarity of call-outs, sound effects and music. Add presence to your title and unlock the true potential of the audio track.
Effortless Install - Comprehensive Instructions and Installation Video available. A few simple connections and only basic hand tools required - anyone can do this!
Speakers:
- 8in Cabinet Speaker:
- PinWoofer PW-DVC-8X2 8in, 190W Max
- Two voice coils in parallel for maximum bass drive - optimized for Stern kits.
- PinWoofer 8in Universal Interposer Mounting Ring with Hardware.

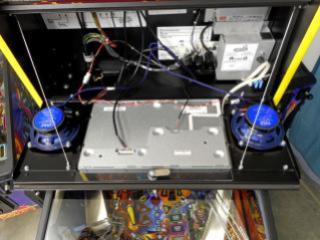

5.25 Backbox Speakers:
- Pyle PL53BL 5.25in, 200W MAX Triaxial Speaker Pair
- For the Pro and Premium Trim Package, 4" to 5.25" Mounting Interposer Ring Pair with Hardware.
- For the LE Trim Package, or for those who have upgraded to 5.25" backbox speaker plates, 5.25" Spacer Ring with Hardware.
Electronics:
PinWoofer GT Amplifier:
- Tone controls for Bass Cutoff Frequency, Bass (Cabinet Speaker) Volume, Backbox Volume, Treble Control and Master Volume Control.
- Integrates seamlessly with existing External Volume Control or External Headphone Station.
- Pre-amplifier Stage with Auto-Muting for noise reduction.
- Glass TamerTM – Patent Pending Glass Shake Reduction Technology.
- Differential Input with Gain Control.
- Line-out for External Monitor or Powered Subwoofer.
PinWoofer GT Expander Board:
- Plug and Play Audio Line Converter.

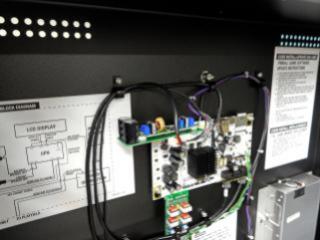

PinWoofer Power Board:
- Plug and Play Power Board - Dedicated Power Source - no splitter or other power sharing solution required.
PinWoofer Platform Harness:
- Plug and Play Harness to Interconnect all components Effortlessly.
Additional Items:

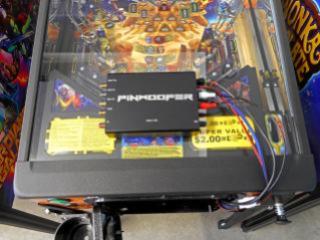

PinWoofer GT Amplifier Mounting Bracket:
- Remove and replace the amplifier to a fixed location, as you may occasionally remove the amplifier and place it on the playfield glass to make adjustments.
- Secure enough to transport your machine without removing the amplifier.
All Required Mounting Fasteners and Hardware:
- Includes an assortment of nuts, washers, and screws to make for a streamlined installation.
Reference:
- PSS-PW-SPIKE2
13 lb
