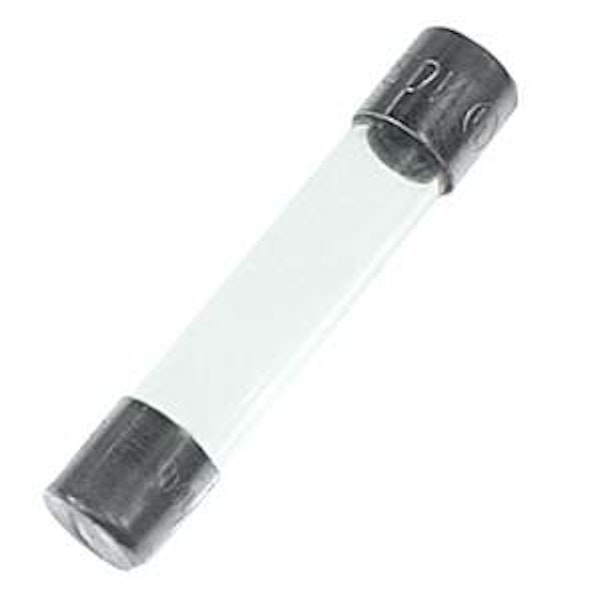

Fuse - Fast Blow 1/2 amp (6.3mm x 32mm)
#AGC-0.5
FUSE - FAST BLOW 1/2 amp 250 V (6.3x32mm) - Box of 5
All fast blow (standard type) fuses have the following electrical characteristics:
| CURRENT RATING | BLOW TIME |
|---|---|
| 110% | 4 hours minimum |
| 135% | 1 hour maximum |
| 200% | 5 second maximum |
The voltage rating on fuses is the maximum voltage at which a fuse is designed to operate. Exceeding the voltage rating of a fuse impairs its ability to clear an overload or short circuit safely. A fuse may be used at any voltage below the fuse voltage rating; a 250V fuse may be used in 125V circuits. 250 volt fuses exceed all pinball machine operating requirements.
0.5 oz
