Miniature snap action switch with 3 terminals actuator blade
CALIFORNIA WARNING
This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

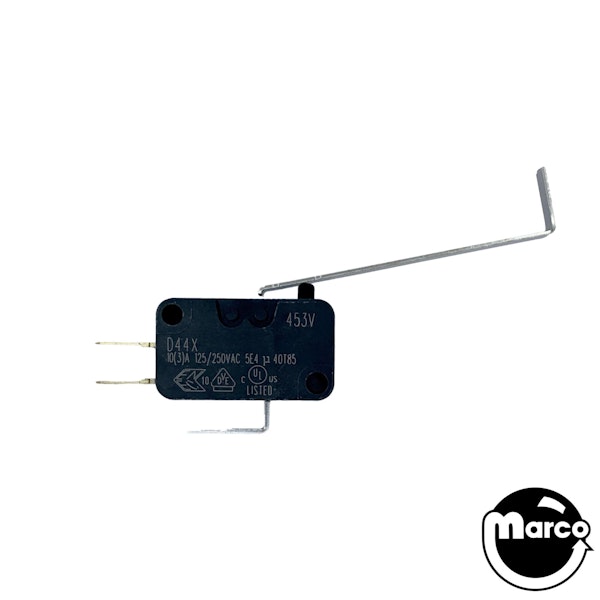

Miniature snap action switch with 90 degree bend actuator blade.
This is a replacement microswitch housing which serves as a substitute for the discontinued factory part #17-1012.
Installation Notes:
This aftermarket replacement switch differs slightly from the discontinued factory original. While fit and function remain the same, the actuator blade on this switch is slightly wider at 3/16 inches (compared to the original 1/8-inch width). It should install without issue, as it is compatible with drop targets and the eject hole base (#03-9101-9). If necessary, the switch mounting can be adjusted, or the actuator blade can be trimmed for a proper fit.
Modern switches of this type include three solder lugs, whereas the original had two. Ignore the top lug "NC (Normally Closed) terminal. Use the "COM" (Common) and the "NO" (Normally Open) terminals.
Microswitch body measures 1-3/32 inches long x 5/8 tall x 3/8 wide
Reference:

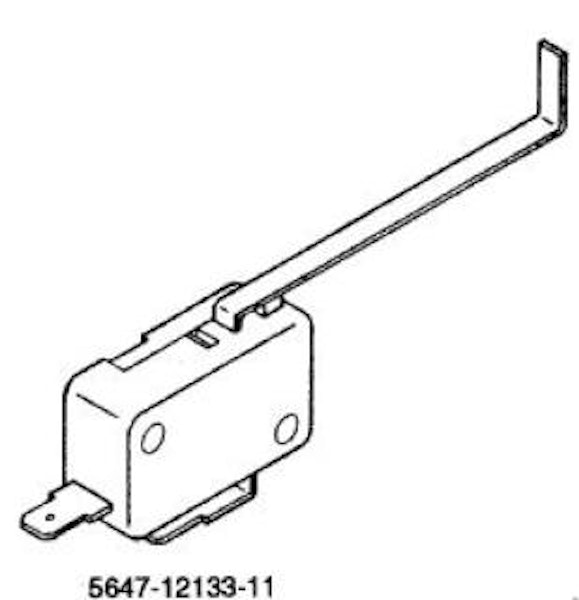

5647-12133-11
