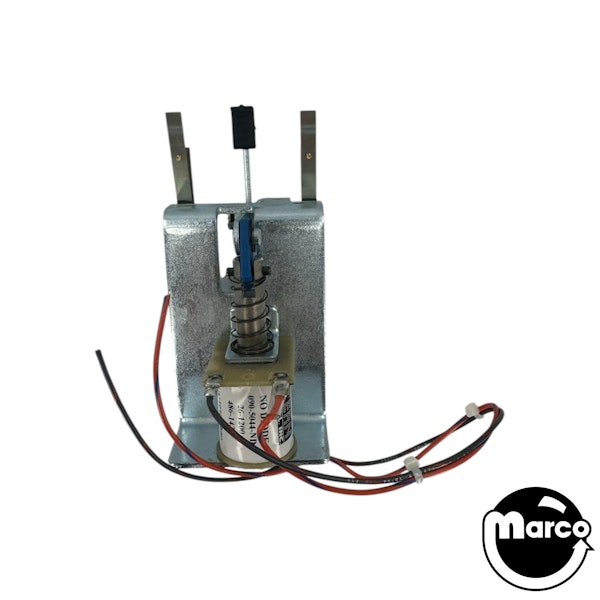

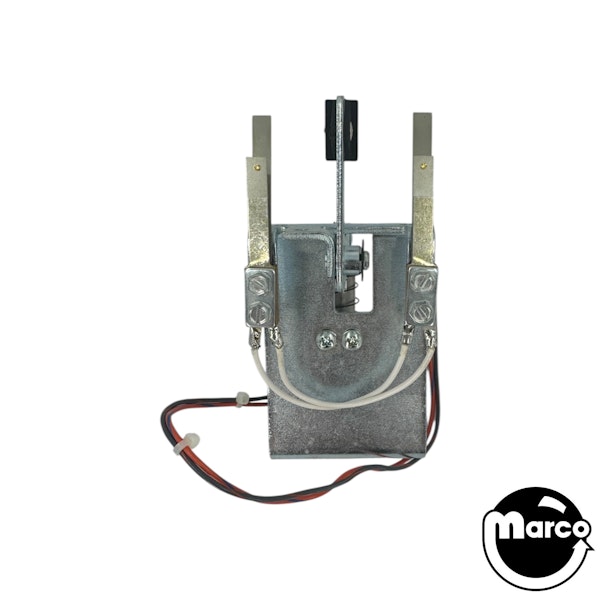

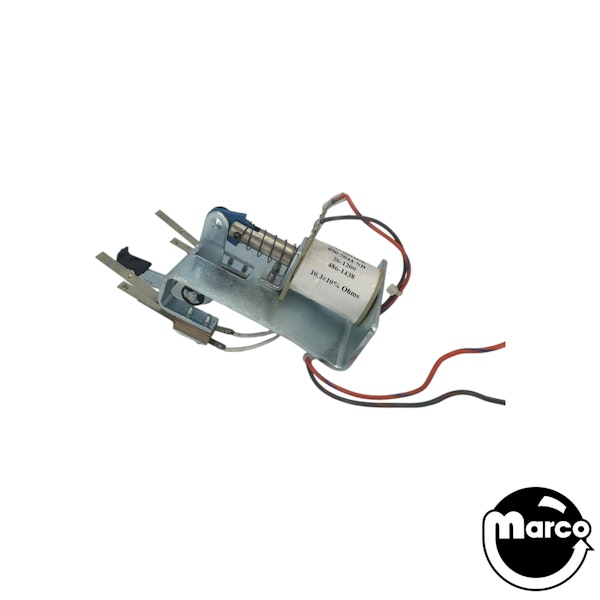

This is a complete like new slingshot assembly including coil and a small section of wire for ease of install.
This part is in like-new condition. It may show minor signs of storage wear, light witness marks from testing, or previously soldered terminals. These components were only used for testing purposes.
Comes with the following parts:
515-5339-01 – SLING SHOT BRKT ASSY (Qty: 1)
090-5044-ND – COIL - 26-1200, NO DIODE (Qty: 1)
545-5031-00 – COIL SLEEVE (Qty: 1)
535-5203-03 – COIL RETAINING BRACKET (Qty: 1)
232-5301-00 – SCREW, 8-32 X 3/8" PPH SEMS (Qty: 2)
180-5231-00 – SLING SHOT SWITCH - 2 LUG - STANDARD LUGS (Qty: 1)
535-5045-00 – SWITCH PLATE (Qty: 2)
237-5976-04 – SCREW, 6-32 X 5/8" HWH SWAGE (Qty: 2)
515-5340-01 – ARM & TIP ASSY (Qty: 1)
270-5002-00 – RETAINING RING - 1/4" (Qty: 2)
515-5338-00 – PLUNGER & LINK ASSEMBLY (Qty: 1)
266-5020-00 – COMPRESSION SPRING - CONICAL 1" (Qty: 1)
Reference:
Stern Pinball, Inc. (SPI): 500-9920-01
