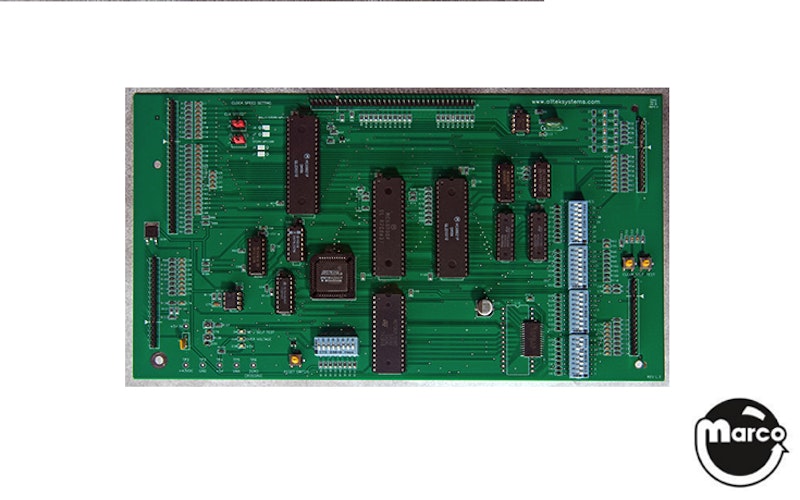

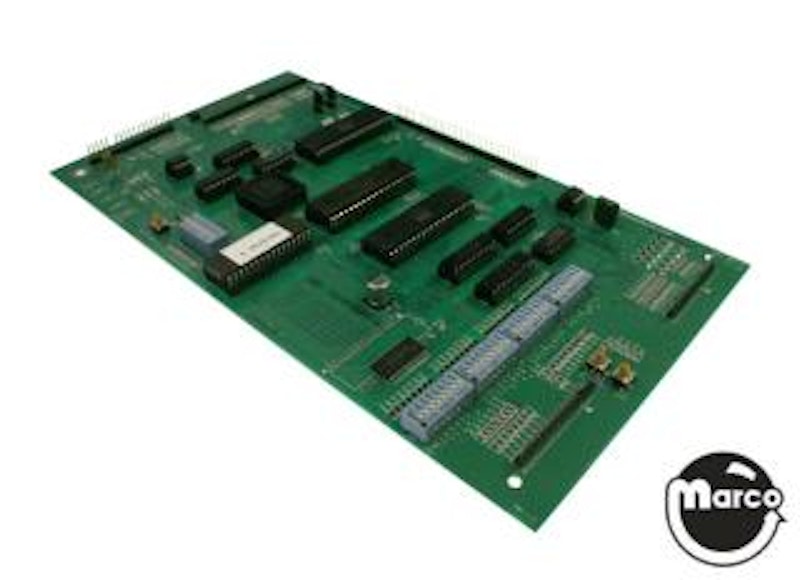

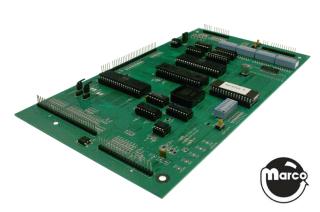

ULTIMATE Bally & Stern MPU board
The last MPU board you'll ever need! If you own a Bally or Stern coin op pinball machine with an AS-2518-35 or AS-2518-17, AS-2518-133, AS-2962-7, A084-91603-AA44, MPU100 or MPU200 MPU board, this board is for you!
It's a plug and play replacement that has every classic Bally and Stern pinball game program ROM on board. The Ultimate MPU board is a NEW and ENHANCED COMPUTER for your pinball machine. Some of the many features are:
- All 93 games are dip-switch selectable.
- New FREEPLAY setting for most games!
- No batteries required. Simtek® chip with 100 year memory retention warranty
- New advanced diagnostics.
- Over-voltage protection circuit.
- Auto-resetable fuse protection.
- On-board Self-Test button.
- Full static protection of on-board IC's.
- Test points for all DIP switches for easy testing.
- One chip reset replaces the original 16-component reset from old board.
- On-board reset switch for easy reset without game cycling.
- On-board memory clear switch.
- On-board power monitoring LED indicator.
- Automatic zero-crossing detector circuit - No jumper required.
- Easy read instructions for fast installation game repair.
- Half size board fits existing mounting rails.
- New, improved built in diagnostic program provides a Burn In feature and enhanced troubleshooting when used with optional ULTIMATE TEST CARD.
- All board components labeled for easy identification.
- Test points that allow easy troubleshooting.
- All ICs socketed.
- Schematic and manual included and available online. Email and phone support.
- Lifetime warranty for home or commercial use.
- Made and assembled in the USA.
Here's one INSTALLATION VIDEO:
For more information or questions email: ALLTEKSYSTEMS.COM
- Lifetime warranty - best in the industry.
On-line support: MANUAL, SCHEMATICS, E-MAIL
OTHER GAMES supported:
- SEXY GIRL
- BIG BALL BOWLING
- BLACK SHEEP SQUADRON
- GENESIS PUCK BOWLER
- BLACK BEAUTY SHUFFLE
- BIG BAT BASEBALL
- New FATHOM
- New VECTOR
Please note; NOT compatible with the home versions of FIREBALL, CAPTAIN FANTASTIC, or EVEL KNIEVEL.

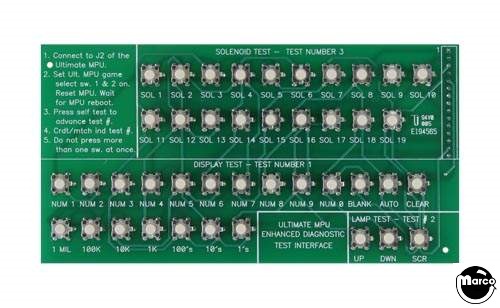

Also check out the companion ULTIMATE TEST CARD Test Fixture (Item #ULTEST) to help diagnose other problems with your 1977-1984 Bally or Stern pinball machine. Order both the ULTIMATE MPU & TEST CARD (Item #ULTCOMBO) and SAVE $10.00.
