IC - 28 pin DIP .600 wide STK12C68 NV RAM
#STK12C68

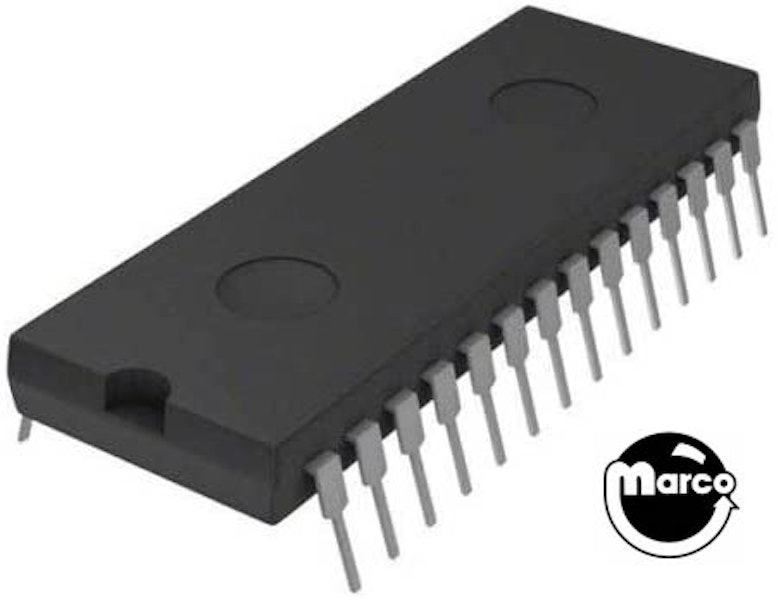

Integrated circuit 28 pin DIP .600 inch wide package STK12C68 Non Volatile RAM

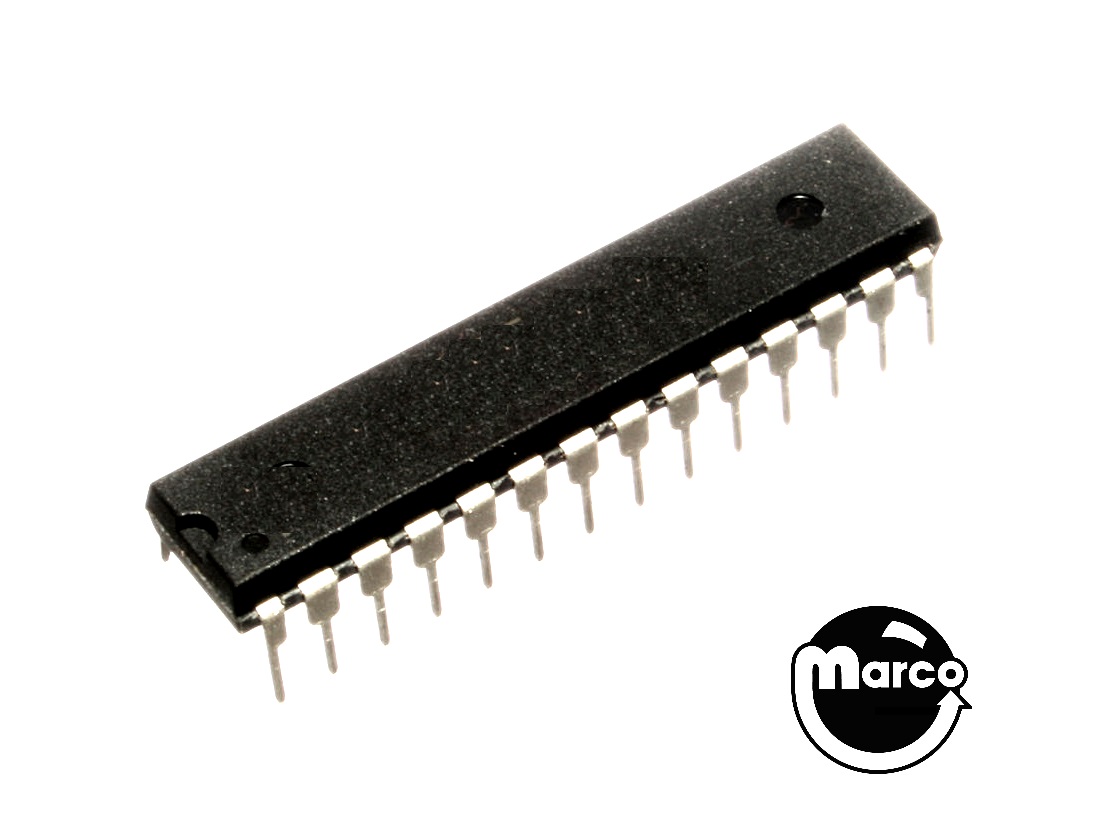

The STK12C68-PF45 is an Autostore nvSRAM with a density of 64K organized as a 8K x 8. The device has a single 5 Volt power supply, a speed of 45 nanoseconds, comes in a 28 pin 300 mil lead free plastic DIP package and has commercial temperature specifications.
Reference:
- STK12C68-W55
- SYL12C68
- STK12C68-W45I
IMPORTANT INSTALLATION NOTES
When used in the following systems, installation will require circuit board component level replacement tools and skills. If your current RAM is not socketed, first installing a 28 pin socket is strongly recommended.
Board modifications:
- Sega or Stern -- the HSB pin number 26 needs to be removed.
- Data East -- remove HSB pin number 26, and make a link between +5V and B+.
- Williams -- some games use larger RAM circuits. To be able to use this NVRAM, add resistor 1.5k on R93, and remove O ohms resistor on W3.
