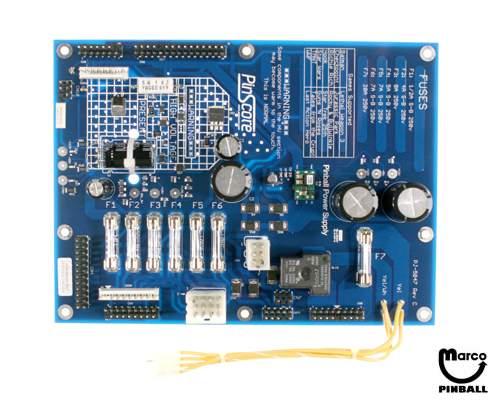

PinScore Power Supply, Data East DMD, HV
The PJ-5047-HV is engineered from the ground up with modern technologies and manufacturing techniques. Built around new switching power supply technology, PinScore power supplies boast nearly twice the efficiency and half the heat output of the original late 1980s and early 1990s-era Data East designs found in these pinball machines.
The PJ-5047-HV is a drop-in replacement for the Data East part number 520-5047-00 and is used in the following pinball machines:
New safety features such as short-circuit and over-temperature protection increase reliability and protect your game from other faults. Extra power output enables your machine to effortlessly run game upgrades such as LED displays. As a drop-in replacement, the PJ-5047-HV includes everything you need to replace your game's power supply - no soldering or engineering experience required!
The PJ-5047-HV is a complete replacement for the original power supply, for powering both the game electronics and high-voltage displays.
Features:
5V Switched Regulator Power Supply
The main 5-volt DC linear power supply has been replaced and completely redesigned to the cool, reliable switched-regulator style power supply used in modern computers. Thanks to high efficiency and little waste heat, switched regulators require no large metal heat sinks. This is an eco-friendly, "green" power supply that keeps your backbox internal temperature cooler and lowers your machine's overall power consumption. It is also short-circuit tolerant, so an errant screwdriver or a fault in the 5-volt circuit will not harm the power supply.
Warranty:
All PinScore power-supply products are covered by a 5-year, transferrable warranty. Should your power supply fail, contact your distributor for repair or replacement options. PinScore products will be repaired or replaced at the distributor’s discretion.
PinScore power supplies are a replacement product for aging pinball machines. While PinScore power supplies are carefully engineered to replace as many high-failure parts as possible and retain robustness, there remains a possibility that other parts of your machine may need to be repaired before your game will function correctly. These parts include but are not limited to your machine’s other circuit boards, transformer, wiring, and fuses. The PinScore warranty does not cover damage caused by improper installation, faulty wiring, and incorrect aftermarket repairs.
Reference:
