MEDIEVAL MADNESS (Williams) Protectors

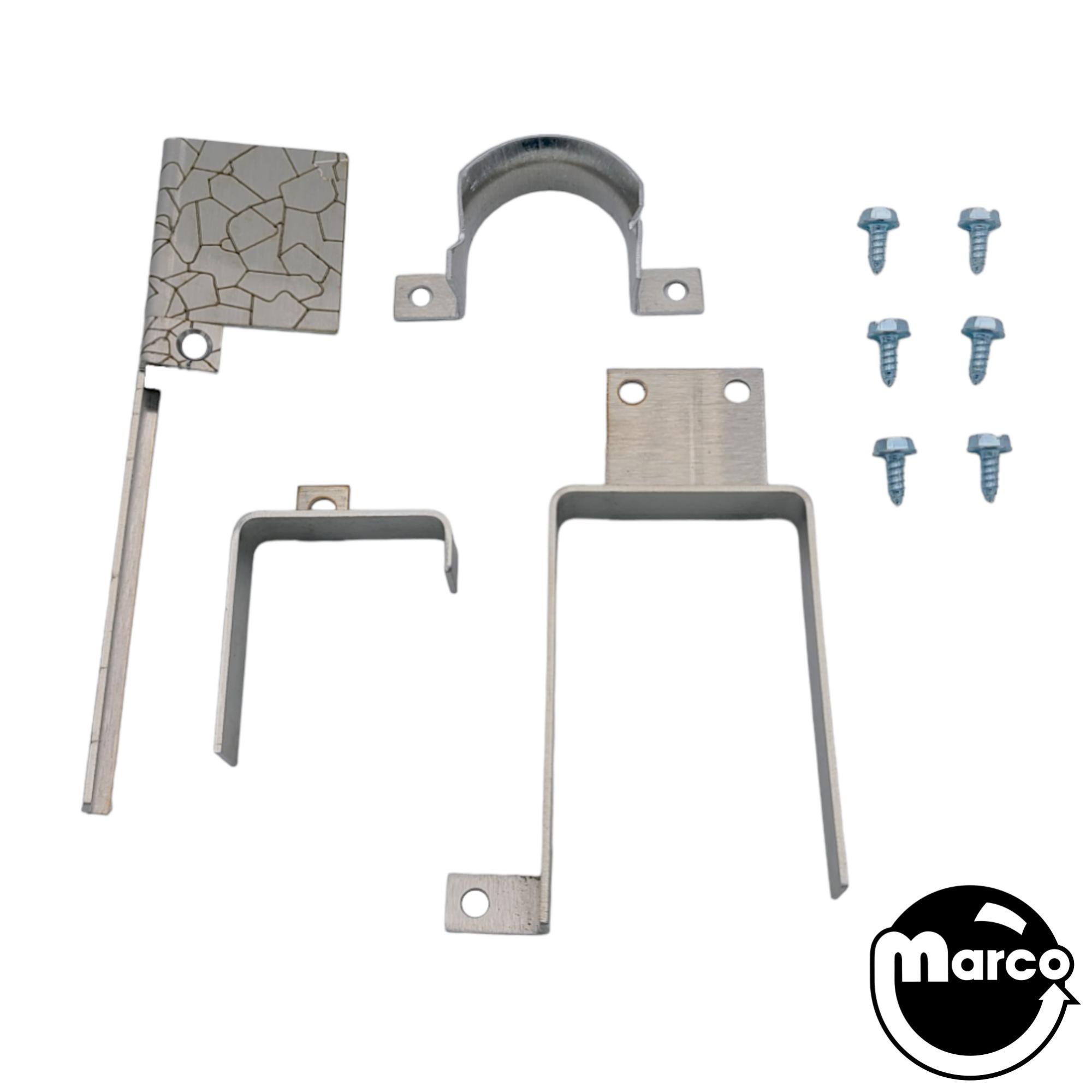

This is the 4 piece ramp and hole guard set for Williams MEDIEVAL MADNESS pinball machine.

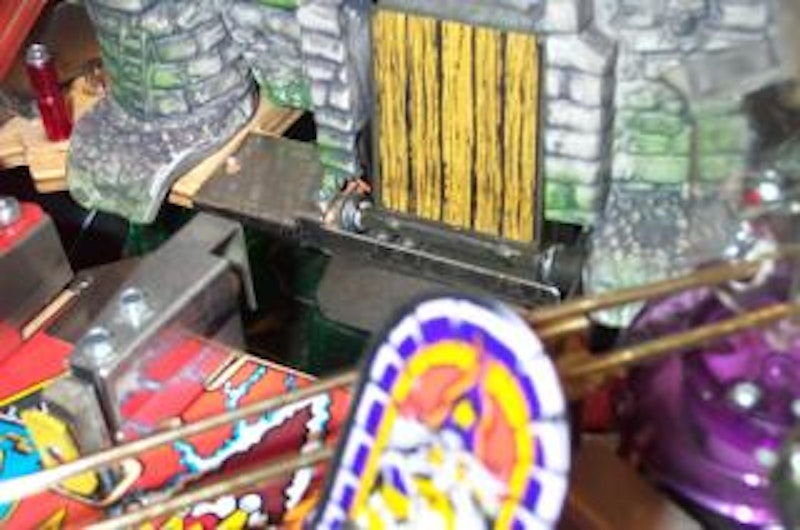

Here is the castle protector installed. The center screw is an existing screw and holds the protector in place. The other screw hole on the left does not need to be put in. Place either 2 sided tape under the flat portion on the left or use the countersunk screw on the left to keep the protector from moving after successive ball hits.

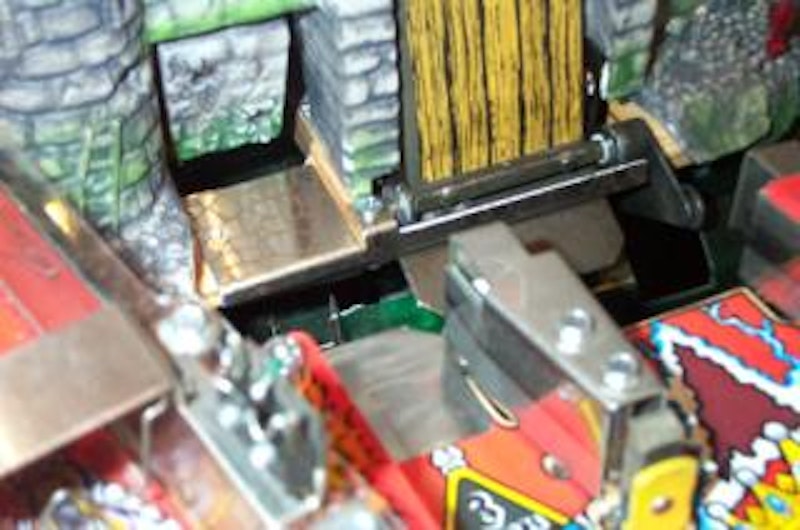

Here is the installed bracket with rock pattern laser etched on to the castle protector.

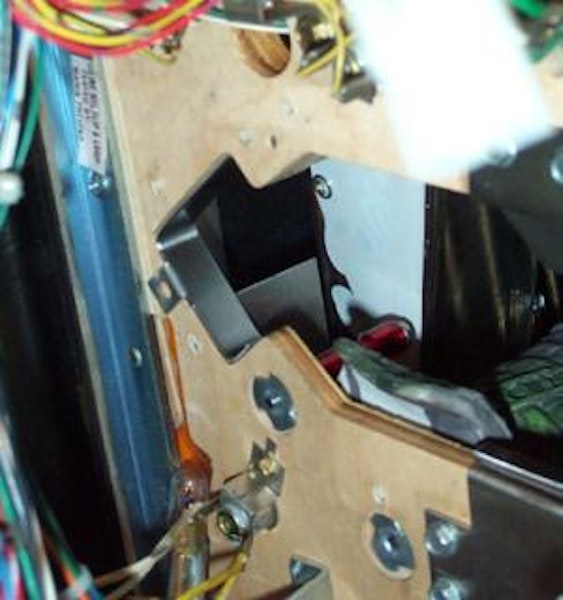

This is the small eject hole protector on the left side of the game. One provided screw secures this. You must remove the moat and several mechanisms to install this.
This is the installed Merlin protector. You must remove the mechanism to access it. This piece is made of soft aluminum to allow for adjustment should there be excessive wear. You must bend this protector in order to install it.
The Merlin protector does not block ball motion. Be sure that the surface of the playfield and the top of the protector are flush or that the protector is slightly below the top of playfield.
The top view shows the protector with a snug fit.

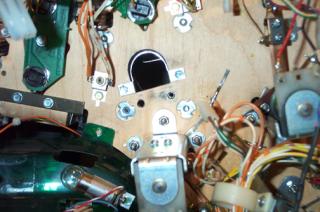

The wood is damaged as the ball goes through the secret gate.
The protector prevents future damage will be eliminated. 3 provided screws hold this in place.
