Capacitor Kit - Bally Squawk & Talk

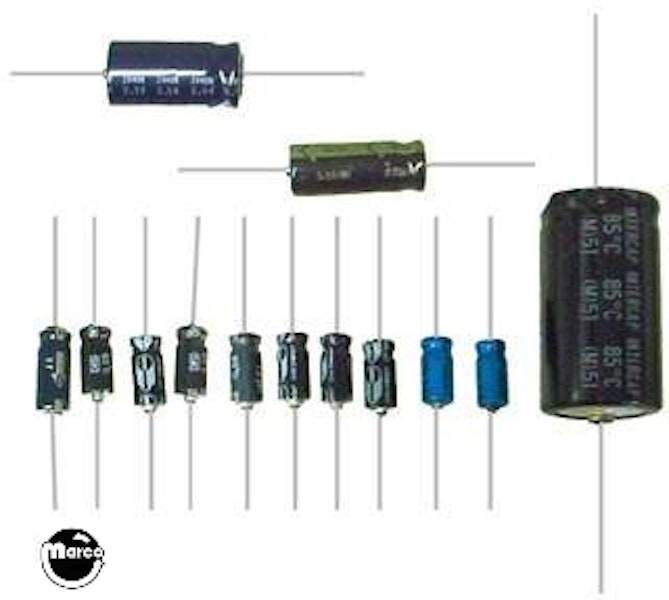

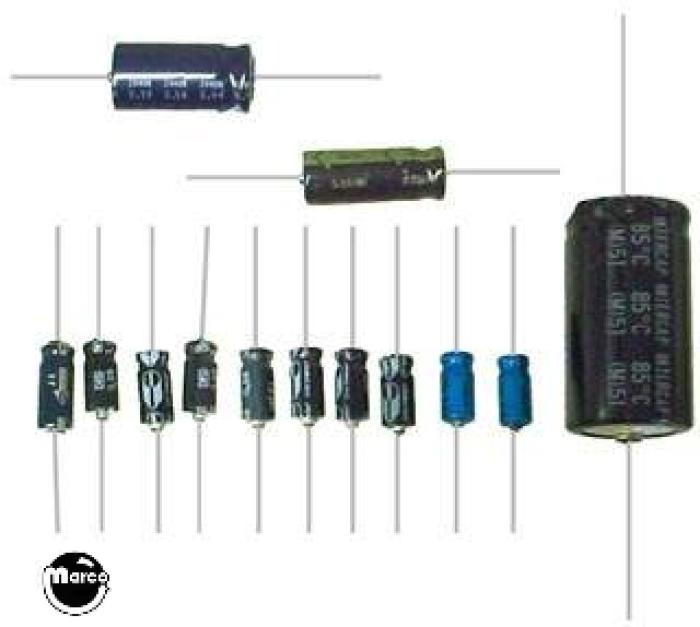

This is the 16 piece axial electrolytic Squawk & Talk Capacitor Kit for Bally AS-2518-61 Sound/Speech Boards. Most common sound problems are fixed by replacing all of these electrolytic capacitors that have dried up over many years of operation.

We may substitute higher voltage rating capacitors in the kit whenever possible for superior performance.

 Includes the following values and quantities:

C1 - 47uF/16v

C14 - 4700uF/25v

C15 - 10uF/25v

C19/C24/C25/C28/C31/C34/C42 - 1uF/50v

C27- 1000uF/16v

C29 - 470uF/10v

C36/C43 - 2.2uF/50v

C37/C38 - 330uF/50v



Squawk and Talk boards are used in the following pinball machines:

FLASH GORDON

EIGHT BALL DELUXE

EIGHT BALL CHAMP

FIREBALL 2

EMBRYON

FATHOM

MEDUSA

CENTAUR & CENTAUR II

ELEKTRA

MR & MRS PAC MAN

SPECTRUM

VECTOR



Video Pinballs:

BABY PAC MAN

GRANNY AND THE GATORS



Reference:

Bally AS-2518-61B board

INSTALLATION INSTRUCTIONS:

Contents:

 Board Designation                              Value                           Quantity          Part#

C1                                                        47uF/16v                    1                      C47M16VA

C14                                                      4700uF/25v                1                      C4700M25VA

C15                                                     10uF/16v                     1                      C10M25VA

C19/C24/C25/C28/C31/C34/C42       1uF/25v                       7                      C1M50VA

C27                                                     1000uF/16v                 1                      C1000M16VA

C29                                                     470uF/6v                     1                      C470M10VA

C36/C43                                              2uF/25v                       2                      C2.2M50VA

C37/C38                                              330uF/50v                   2                      C330M50VA



Installation tips:



·         OBSERVE POLARITY markings on capacitors and board.  CAPACITORS MAY BURST IF INSTALLED BACKWARDS!



·         Change all old capacitors, even if they appear to be good. Some original capacitor values have been substituted with higher voltage ratings for increased reliability.  Electrolytic capacitors eventually "dry out" from heat stress and age and become electrically or physically "leaky".



·         Measure the power supply voltages. Be sure that the +12 volt DC input has no more than 0.3 volt AC ripple.  Check the + 5 volt DC supply for an acceptable range of 4.75 volts DC to 5.25 volts DC with no more than 0.005 volts ripple.  Change the 5 volt regulator (LM323K) if the voltages are not correct.



·         See Bally Pinball Troubleshooting Manual FO-560-3 for additional troubleshooting help.
