MONSTER BASH (Williams) arm sub assy

#A-22299


MONSTER BASH (Williams) arm sub assy

Availability

Out of Stock

Price

$66.99

Order

This product is not currently available.

⚠ CALIFORNIA WARNING: This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product details

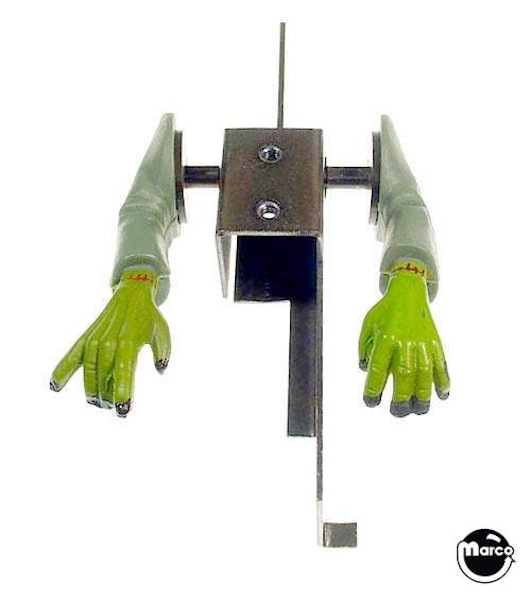

Williams MONSTER BASH pinball machine monster arm sub assembly.

Ships un-assembled

Reference:

A-22299 Monster arm sub assembly01-14956.1 (2) washer- arm02-5448.1 (1) shaft-arm pivot04-11175 (1) actuator-arm pivot04-11176 (1) bracket-arm pivot support10-539 (1) spring-arm pivot20-8712-18 (2) e ring 3/16 shaft31-3104.1 (1) monster arm-left31-3105.1 (1) monster arm-right4004-01073-04B (2) cs 4-40 x 1/4 button-head4008-01083-04 (1) set screw 8-32 x 1/4 sh-cp-n

Weight: 16 oz

Product compatibility

Chicago Gaming Company

Williams

MONSTER BASH (Williams)

Related Items

-MONSTER BASH (Williams) washer- arm

MONSTER BASH (Williams) washer- arm

Williams MONSTER BASH pinball Monster table arm washer.

-MONSTER BASH (Williams) Shaft - arm pivot

MONSTER BASH (Williams) Shaft - arm pivot

MONSTER BASH (Williams) Shaft - Monster table arm pivot

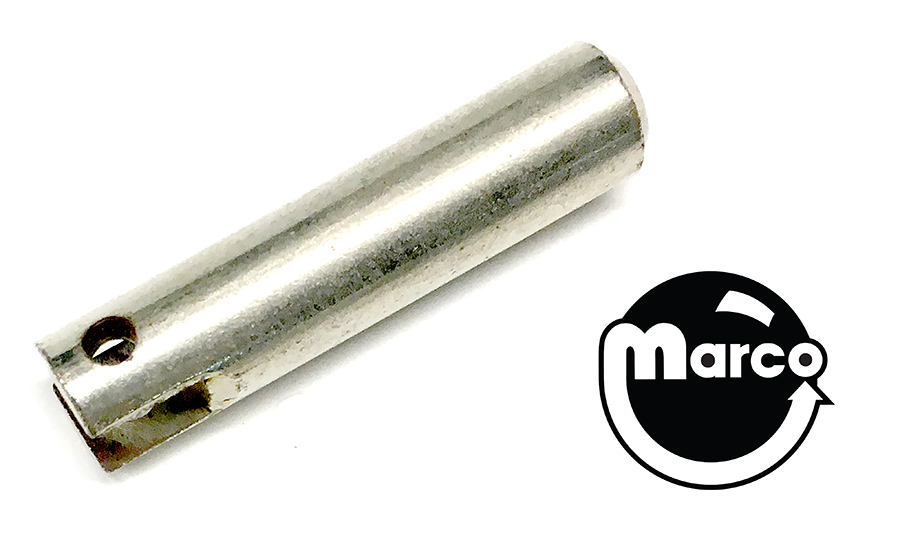

-MONSTER BASH (Williams/CGC) Plunger Mummy

MONSTER BASH (Williams/CGC) Plunger Mummy

Mummy plunger for Williams and Chicago Gaming MONSTER BASH pinball machines...

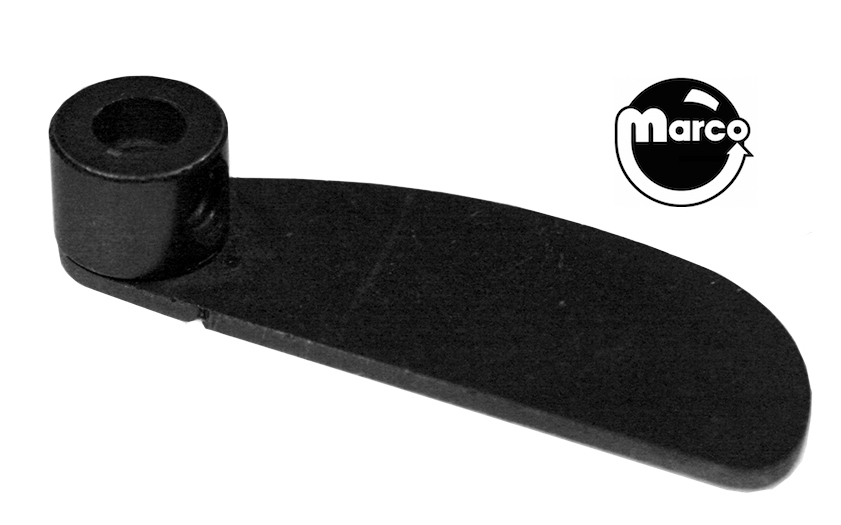

-actuator-arm pivot

actuator-arm pivot

actuator-arm pivot

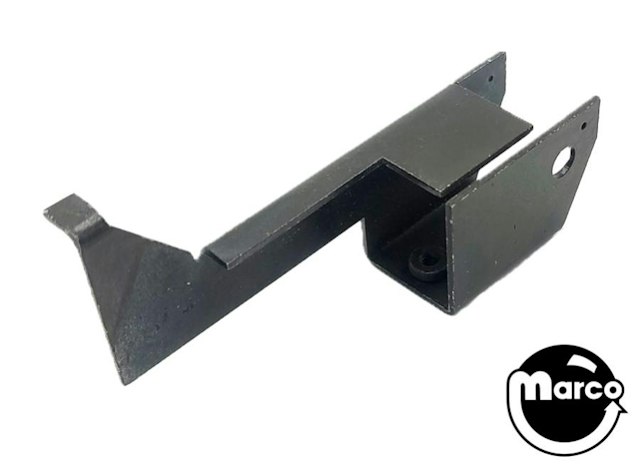

-Bracket-arm pivot support

Bracket-arm pivot support

Bracket-arm pivot support

-Spring - arm pivot

Spring - arm pivot

Pivot arm spring. Reference: 10-539

-MONSTER BASH (Williams) Motor & gearbox

MONSTER BASH (Williams) Motor & gearbox

Williams MONSTER BASH pinball machine motor and gearbox assembly for the D...

-E-clip for 3/16 inch shaft 270-5001-00 P-6316-4

E-clip for 3/16 inch shaft 270-5001-00 P-6316-4

E-clip or e-ring commonly used on many 3/16" mechanism shafts

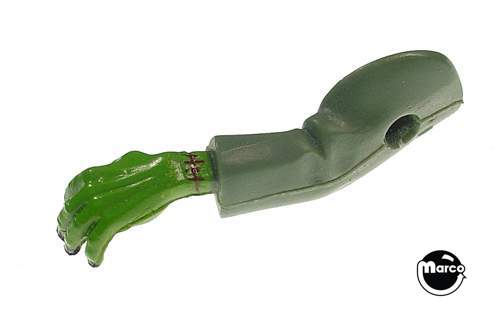

-MONSTER BASH (Williams) Left monster arm

MONSTER BASH (Williams) Left monster arm

Williams MONSTER BASH monster arm left side. Reference 31-3104...

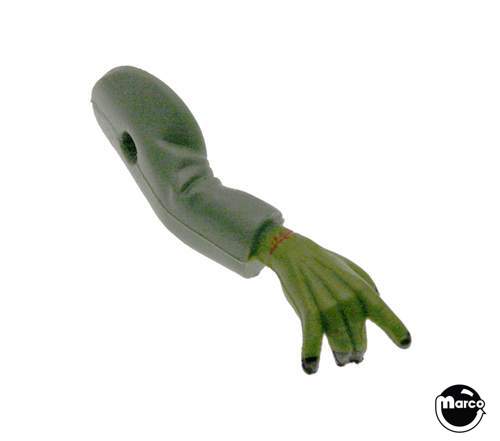

-MONSTER BASH (Williams) Right arm

MONSTER BASH (Williams) Right arm

Williams MONSTER BASH monster arm right side. Reference 31-3105...

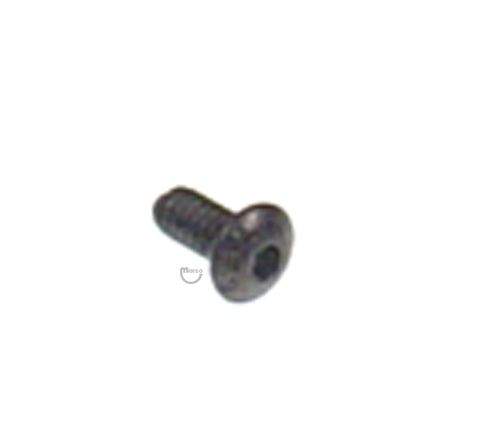

-Machine Screw 4-40 x 1/4" button head

Machine Screw 4-40 x 1/4" button head

#4004-01073-04B

Cap Screw 4-40 thread x 1/4" long with button top. Used on: CHAMP...

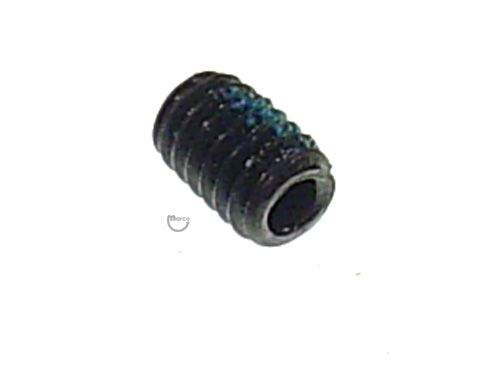

-Set screw 8-32 x 1/4 inch sh-cp-nylon
