ROAD SHOW (Williams) Opto board
#A-19359

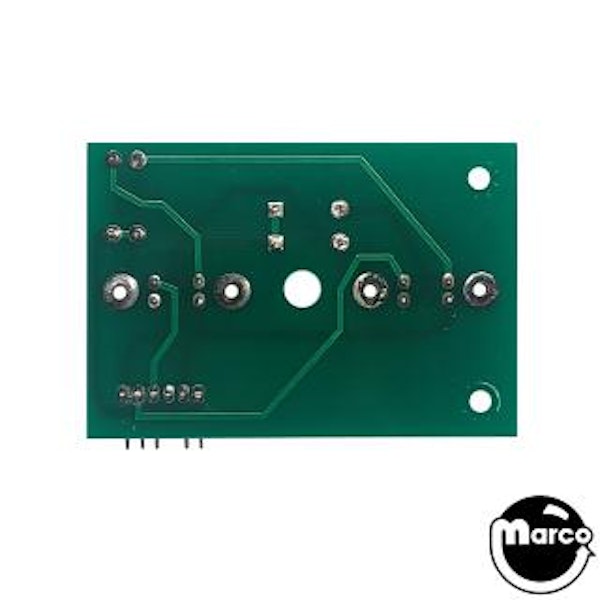

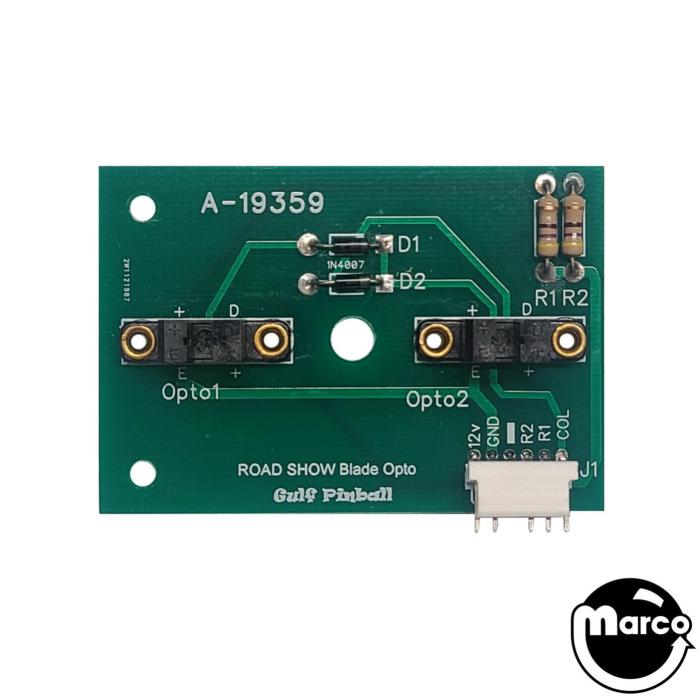

New Williams ROAD SHOW pinball machine blade opto board.
This board is used on the ROAD SHOW dozer blade assembly
This board has two optical switches that determine the position of the dozer blade in front of Ted's head on the playfield. The motor shaft on the assembly has a plastic disc with one blade which passes through the two optical switches. The game knows when the blade is up or down depending on which switch is interrupted. Features:
- Wide-slot optical switches eliminates rubbing of the plastic interrupter.
- Larger traces and pads for better reliability and longevity.
- Visual status LEDs indicators for the two optical switches. They also allow precise positioning of the dozer blade.
Reference:
- A-19359
0.5 oz
