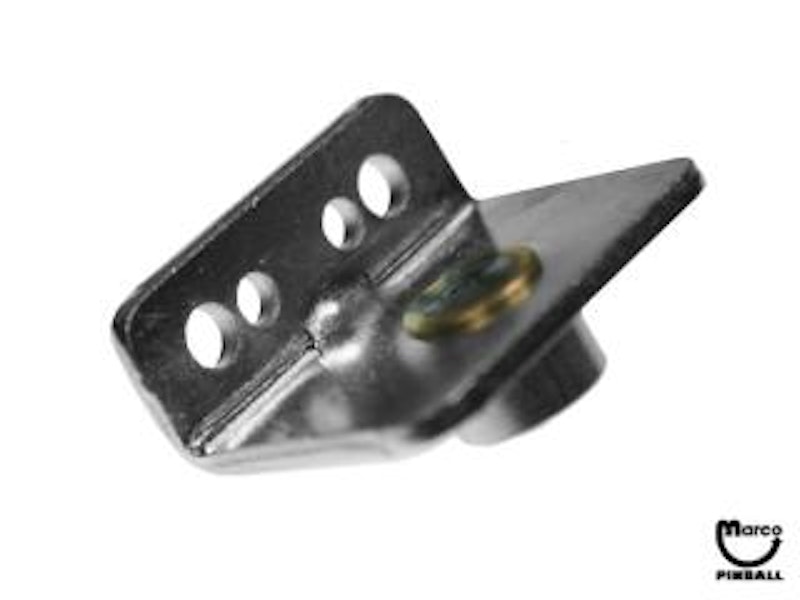

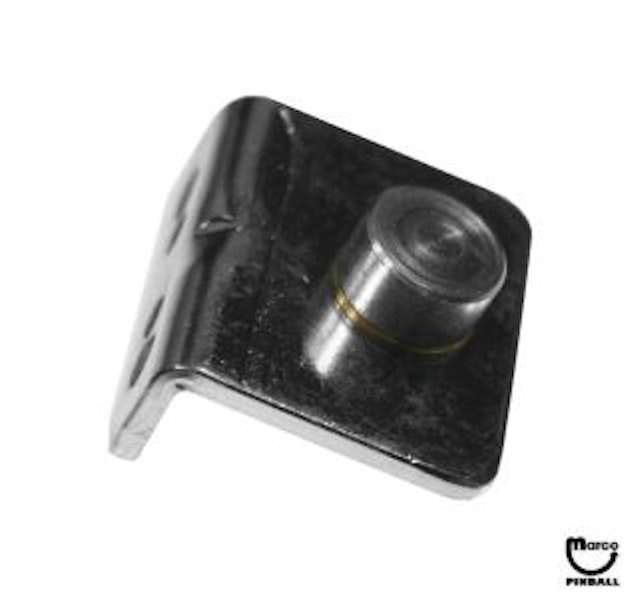

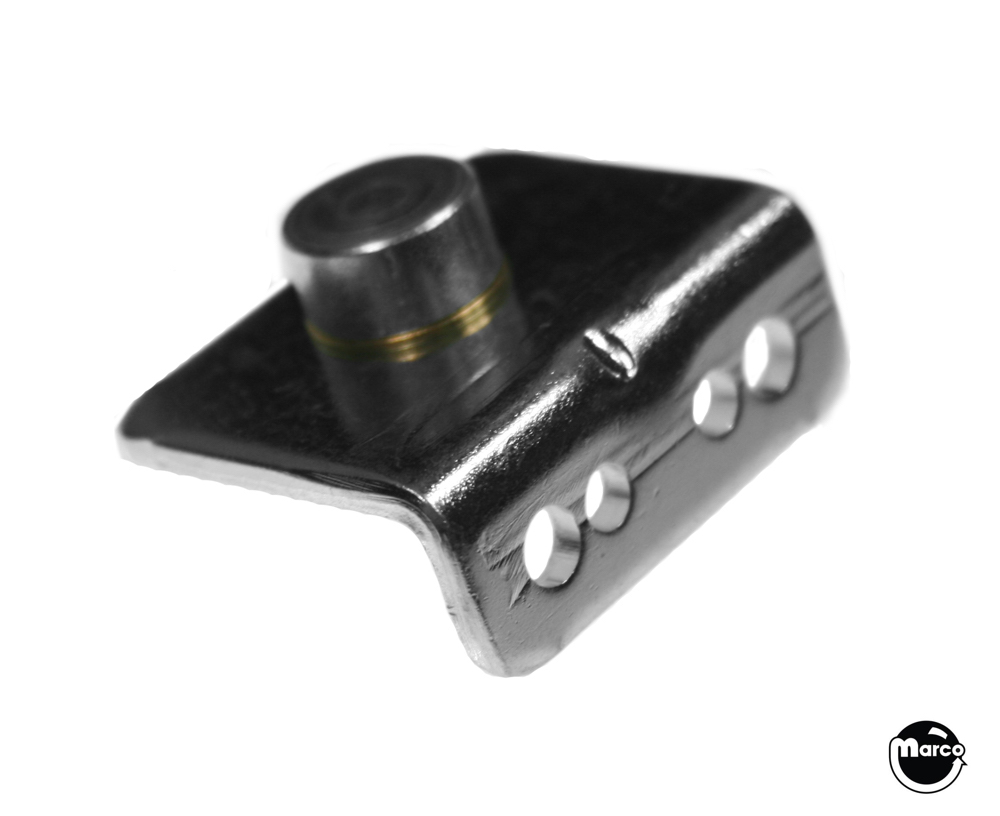

Coil stop - early Stern A-186
Replacement flipper and slingshot coil stop used in Chicago Coin Machine & Stern Electronics, Inc.1 pinball machine flipper, slingshot, pop bumper, ball return and other assemblies. This is a possible substitute for the Game Plan flipper coil stop!
Overall length of bracket is 1-1/4in, overall width of bracket is 1in, overall depth of bracket is 3/4in, distance between outer screw holes measures 3/4in, distance between inner screw holes measures 3/8in, and core length is 1/4in.
The larger mounting holes accommodate #8 size screws and the smaller holes are for #6.
Reference:
- A-186
- A-186-1
- 1A-270-2
- B-196-1 thumper bumper assembly
- B-195-L-1 flipper assembly
- B-195-R-1 flipper assembly
- A-152 automatic ball return bracket
- A-166 automatic ball return arm
- Wico 05-12800
1NOTE:
Stern Electronics, Inc. made pinball machines
between 1977 and 1984 and their products are commonly referred
to as Classic Stern or Early Stern pinball machines.
Stern Pinball, Inc. was established in 1999 and currently manufactures pinball machines referred to as New Stern pinball machines.
Most parts used by these different generations of pinball machines are not interchangeable with each other.
