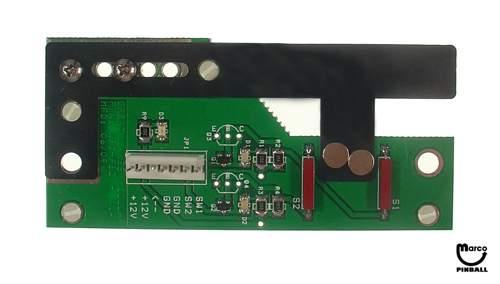

This is the new flipper opto switch board for most Bally/Williams WPC and all WPC-95 pinball machines. It will fit on both left and right flipper buttons on most machines.
It will not fit the left flipper on Bally JUDGE DREDD. Not suited for games (Bally ADDAMS FAMILY) with leaf switches in the flipper assemblies. These games do not have the connector necessary for the board.
Replaces the flipper opto switch board adjacent to cabinet push buttons.
Includes these new features:
Universal replacement for FLIPTRONICS I or FLIPTRONICS II system boards.
No "U" optos to get dirty or plastic interruptors to warp or break. Uses magnets instead of optos.
Virtually indestructable spring steel actuator for ultra long life.
New adjustable spring tension for the precise button feel you want
New adjustable double-flip action for games with more than 2 flippers!
New visual status LEDs illuminate when activated for easy adjustment and quick diagnostics.
The new tension adjustment is variable from light to strong. By moving the adjustment screw up or down, the button action can be made stiffer or lighter to your preference.
The new adjustable double-flip action feature allows a player to operate lower and upper flippers independently by half-pressing the flipper button. This action was not adjustable on original boards. With the new board, the delay between the flips can be adjusted or eliminated.
This board assembly is for all Williams WPC and WPC-95 pinball machines Type 1 & 2 FLIPTRONIC flipper systems.
Used the following Bally and Williams machines:
ATTACK FROM MARS
FLINTSTONES (Substitute for A-16384)
NO GOOD GOFERS
STAR TREK NEXT GENERATION
THE ADDAMS FAMILY GOLD
THEATRE OF MAGIC
TALES OF THE ARABIAN NIGHTS
WORLD CUP SOCCER
A-15878 Double flipper opto assembly board and actuator.
