gun motor Bracket assy-left

#A-17220-L

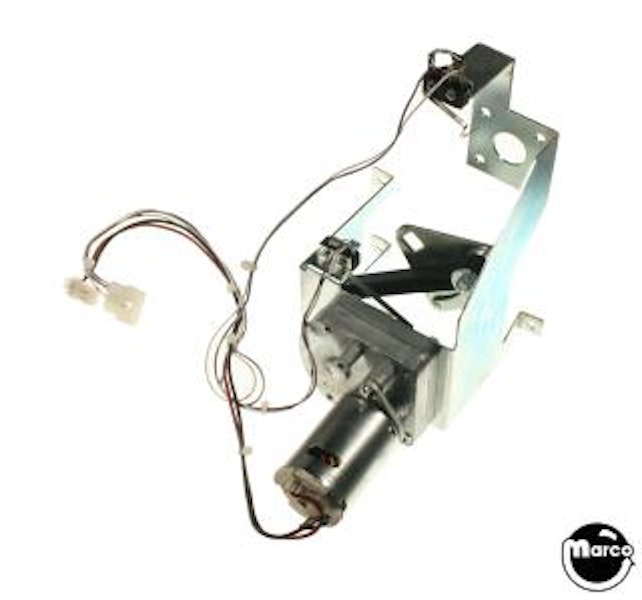

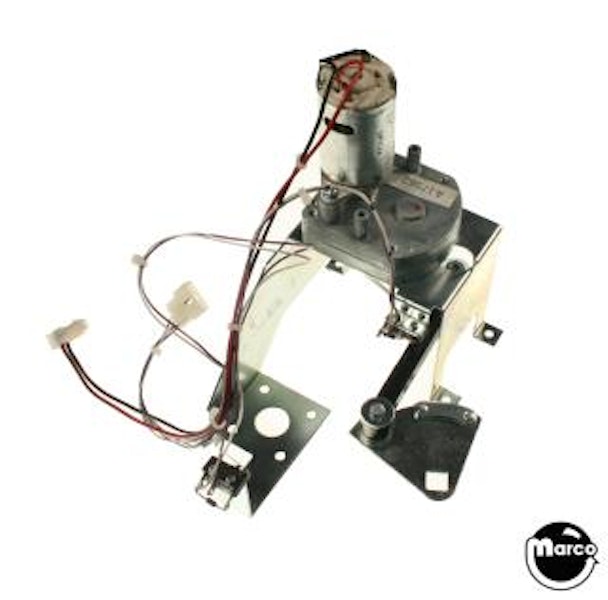

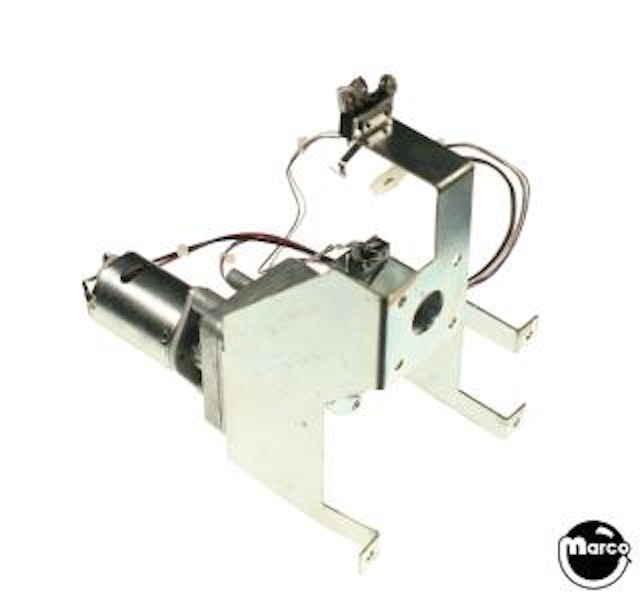

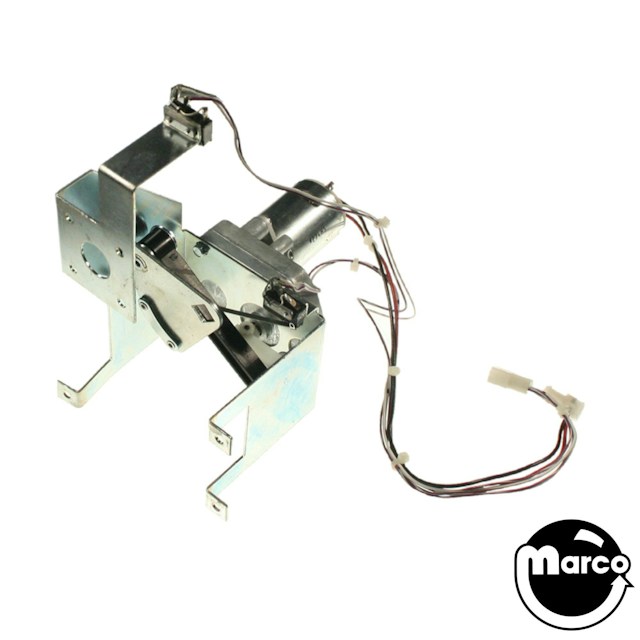

STAR TREK NEXT GEN (WMS) Gun motor assembly left

Ships unassembled.

Reference:

  • A-17220-R right assembly
  • A-17220-L left assembly

    • 01-11799-L (1) bracket gun motor left
    • 01-8240 (2) plate-nut #2-56
    • 03-7520-2 (6) tie wrap-nylon 3 7/8
    • 03-8620 (1) actuator-bookcase
    • 4002-01105-07 (4) ms 2-56x7/16 p-ph-s
    • 4008-01168-06 (1) ms 8-32X 3/8 pl-hh-s
    • 4008-01168-12 (4) ms 8-32x3/4 pl hh-s
    • 4108-01031-14 (1) sms #8X7/8 p-th-type 25
    • 4700-00023-00 (2) fw .203X.625X.059
    • 5070-09054-00 (2) diode-1N4004 1.0a
    • 5647-12693-08 (1) switch sub mini micro
    • 5647-12693-58 (1) switch sub mini micro
    • 5791-09188-00 (1) 4P1625 03-06-2042
    • 5792-10818-02 (1) 2r mt/end 18/156
    • 5820-09078-00 (3) pm1560 02-06-2101
    • A-17562 (1) motor & crank
    • A-17735-L (1) drive plate
    • H-17068-1 (1) bottom gun cable

1.75 lb

Product Discontinued
