DR WHO (Bally) Infared LED PCB assembly

#A-15897


DR WHO (Bally) Infared LED PCB assembly

Availability

For Reference

Order

This product is currently discontinued.

⚠ CALIFORNIA WARNING: This product can expose you to chemicals, including lead and DEHP, which are known to the State of California to cause cancer and birth defects, or other reproductive harm. For more information, go to https://www.p65warnings.ca.gov.

Product details

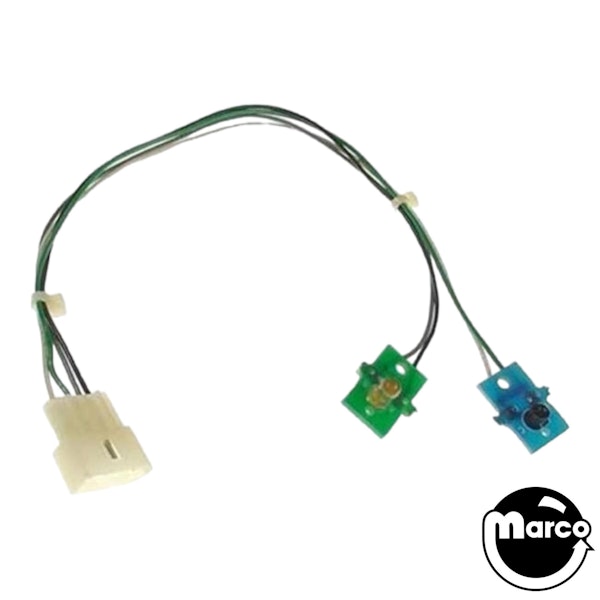

Bally DR WHO pinball machine opto board with cable and connector assembly.

Reference:

A-15897
03-7520-2 (3) tie wrap-nylon 3 7/8
5791-09188-00 (1) 4P1625 03-06-2042
5820-09078-00 (4) pm1560 02-06-2101
A-16908 (1) opto led assy
A-16909 (1) opto photo transistor
CW-30022-0 (10) wire 22awg black
CW-30022-5 (10) wire 22awg green
CW-30022-8 (10) wire 22awg gray
CW-30022-9 (10) wire 22awg white
H-15591 (1) home opto cable

Weight: 0.32 oz

Product compatibility

Bally

DOCTOR WHO (DR WHO)
