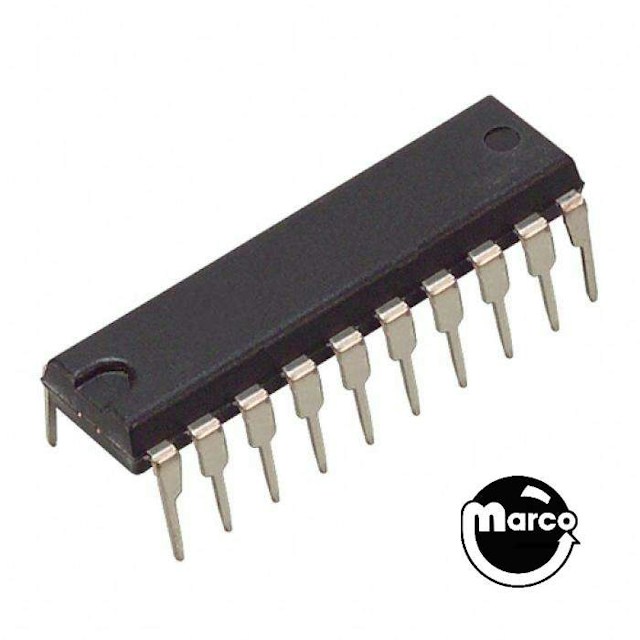

IC - 20 pin DIP Octal Bus Transceiver
#74LS245
20 pin DIP Tri State Octal Bus Transceiver Integrated circuit used on many pinball machine circuit boards.
Transmitter/Receiver designed for 8-line asynchronous 2-way data communication between data buses.Direction Input (DR) controls transmission of Data from bus A to bus B or bus B to bus A depending upon its logic level. The Enable input (E) can be used to isolate the buses.
Octal bus transceiver · Hysteresis Inputs to Improve Noise Immunity · Low Power Schottky 2-Way Asynchronous Data Bus Communication · Input Diodes Limit High-Speed Termination Effects
Reference:
- 74LS245
- CD74AC245E
- SN74LS245N
- SN74LS245NE4
- 5281-09308-00
- 110-0058-00
0.05 oz
