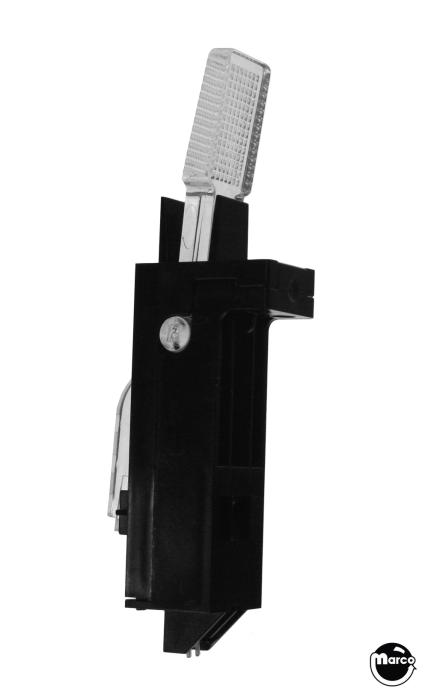

Target switch modular narrow clear

Modular target switch assembly with clear narrow 5/8 x 1 inch rectangle target face.

Reversible target is configured for front mounting (screw holes in front), but may be reversed and re-assembled for rear mounting.

Mounts to underside of playfield with two 1/4 x 1/2 inch hex head screws (not included).

Plugs directly into connector from wiring harness. Can be used as a generic replacement for targets in other makes/models as well.

Reference:

• 500-5138-01 front mount configured
• 500-5138-01R rear mount configured
• 545-5138-01 clear target face only
