THEATRE OF MAGIC (Bally) Backbox tech chart

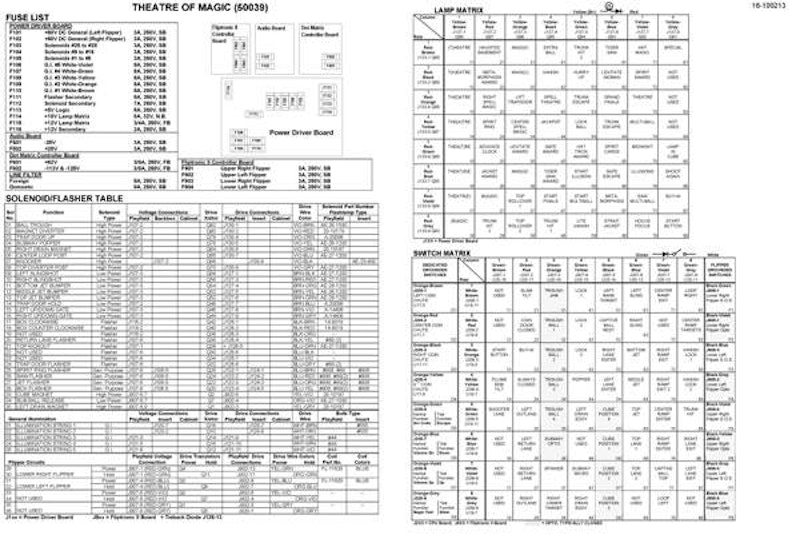

Bally THEATRE OF MAGIC pinball machine backbox technical information matrix chart

Includes coil, controlled lamps, switch matrix, fuse charts. Charts detail wire color, diagnostic code identifiers, transistor, location, part numbers, descriptions and assignments.

11 x 17 inch peel & stick vinyl


  • 16-10021.3
  • 16-50039
12 oz
